Infineon Technologies FP10R12W1T7_B11 EasyPIM™ 1B IGBT Module

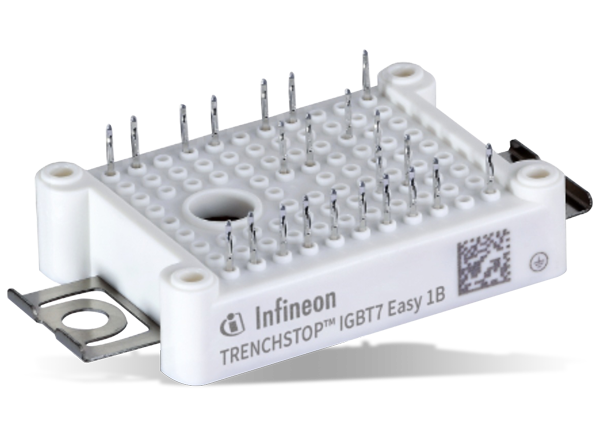

FP10R12W1T7_B11 EasyPIM™ 1B IGBT Module is a 1200V, 10A three-phase input rectifier PIM (Power Integrated Module) Insulated Gate Bipolar Transistor Module with TRENCHSTOP™ IGBT7, an Emitter Controlled Diode, and PressFIT Contact Technology. The compact EasyPIM IGBT Modules are without base plates, instead featuring a fast, reliable, and low-cost screw clamp mount.
Features
- VCES = 1200V
- IC nom = 10A
- Low on state voltage VCE(sat) and Vf
- Tvj op=175°C at overload
- Enhanced controllability of dv/dt
- Optimized switching losses for dv/dt = 5kV/µs
- 8μs short-circuit robustness
- Improved FWD softness
Applications
- Auxiliary inverters
- Servos
- Air conditioning
- Motor drives
Related Products
Infineon Technologies FS50R12W2T7 & FS75R12W2T7 EasyPACK™ IGBT Modules
1200V 3-phase input rectifier IGBT Modules with TRENCHSTOP™ and EC7 diode technology.
Infineon Technologies FS100R12W2T7_B11 EasyPIM™ 2B IGBT Module
1200V, 100A 3-phase input rectifier PIM IGBT Module with TRENCHSTOP and an Emitter Controlled Diode.
Infineon Technologies FF450R33T3E3/_B5 XHP™ 3 IGBT Module
3.3kV, 450A Dual IGBT Module with TRENCHSTOP™ IGBT3 and an emitter controlled diode.
Infineon Technologies EVAL-M1-6ED2230-B1 Evaluation Board
Offers a compatible power board for the iMOTION™ MADK for motor control.
