Vishay Condensadores cuádruples de alta frecuencia

Los condensadores de alta frecuencia cuádruples de Vishay Vitramon incluyen ESD ultra bajo (0,01 Ω a 150 kHz, 1000 pF tamaño de carcasa 1111), Q ultra alto (> 2000), frecuencia de resonancia en serie (SRF) alta, alta tensión (250 V para 0505, 1500 V para 1111) y frecuencia de resonancia en paralelo (PRF). Los tamaños de carcasa cuádruples son 0505 y 1111.

Características

  • Options
    • Non-magnetic copper termination "C" for MRI applications
    • Lead (Pb)-free terminations code "X" for commercial green applications
    • Tin/lead termination code "L" military applications
  • Ultra-stable, high Q dielectric material (NP0)
  • High frequency
  • Reliable Noble Metal Electrode (NME) system
  • Made with a combination of design, materials, and tight process control to achieve very high field reliability
  • Halogen free
  • RoHS compliant ("X" and "C" only)

Aplicaciones

  • RF and microwave instruments
  • Base stations
  • Wireless devices
  • Broadband communication
  • Medical instrumentation and test
  • Military devices (radar, communication, etc.)
  • Satellite communication

Especificaciones

  • Capacitance ranges
    • 0.1pF to 82pF for 0402 case size
    • 0.1pF to 1nF for 0505 case size
    • 0.1pF to 470pF for 0603 case size
    • 0.1pF to 1nF for 0805 case size
    • 0.2pF to 5.1nF for 1111 case size
    • 1.0pF to 3nF for 2525 case size
    • 1.0pF to 12nF for 3838 case size
  • Voltage ratings
    • 200VDC maximum for 0402 case size
    • 50VDC to 250VDC for 0505 case size
    • 250VDC maximum for 0603 case size
    • 500VDC maximum for 0805 case size
    • 50VDC to 1500VDC for 1111 case size
    • 300VDC to 3600VDC for 2525 case size
    • 300VDC to 7200VDC for 3838 case size
  • -55°C to +125°C operating temperature range
  • 0ppm/°C ±30ppm/°C temperature coefficient of capacitance from -55°C to +125°C with 0VDC applied
  • 0% maximum aging rate per decade
  • Dissipation factors
    • 0.05% maximum at 1.0VRMS and 1MHz for values ≤1000pF
    • 0.05% maximum at 1.0VRMS and 1kHz for values >1000pF
  • Insulation resistances
    • 1000ΩF or 100,000MΩ minimum at +25°C and the rated voltage (whichever is less)
    • 100ΩF or 10,000MΩ minimum at +125°C and the rated voltage (whichever is less)

Infographic

Vishay Condensadores cuádruples de alta frecuencia

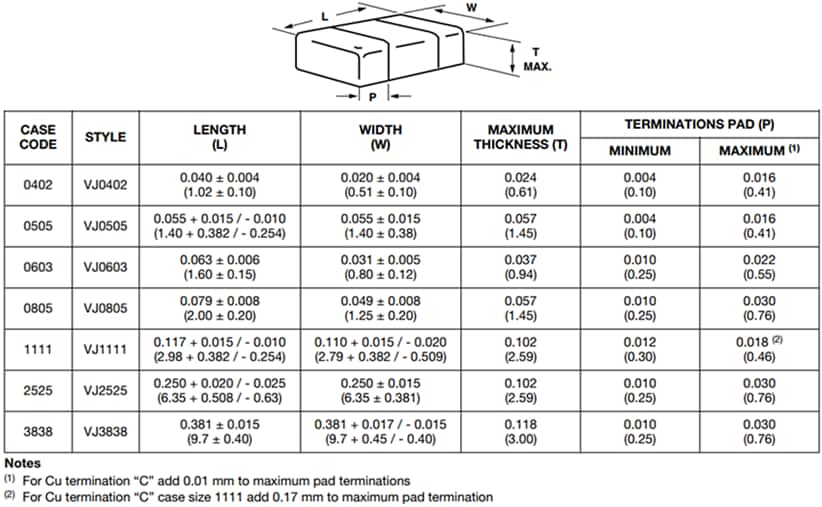

Dimensions (MM)

Vishay Condensadores cuádruples de alta frecuencia

Sample Kits

Publicado: 2013-12-18 | Actualizado: 2022-03-16
