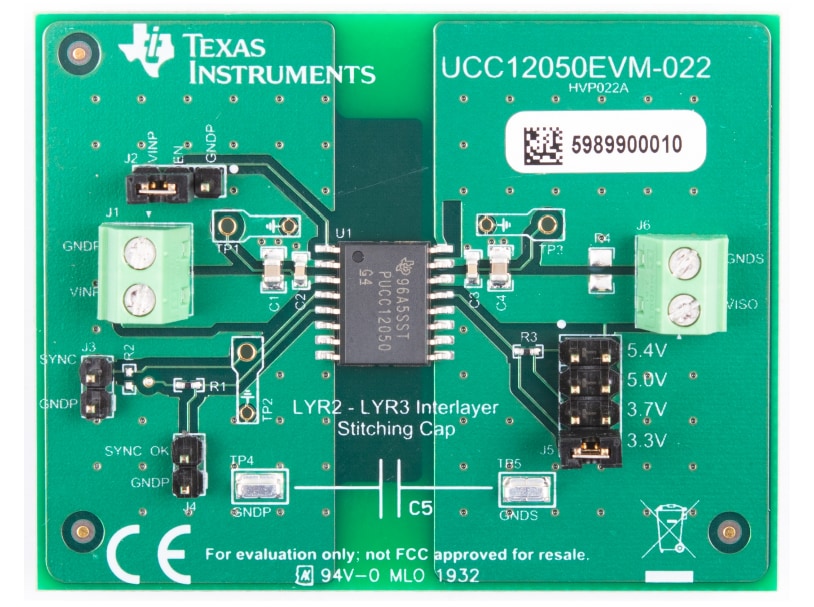

Texas Instruments UCC12050EVM-022 Evaluation Module

Texas Instruments UCC12050EVM-022 Evaluation Module allows designers to evaluate the performance characteristics and abilities of the UCC12050DVE. The UCC12050DVE is a high isolation voltage DC/DC converter designed to provide efficient isolated power to isolated circuits requiring well-regulated supply voltages. The Texas Instruments UCC12050EVM-022 Evaluation Module test functions of the UCC12050DVE include enable/disable, synchronizing the device with an external clock source, detecting external clock faults, and selecting between the available output voltages.

Features

Easily validate all available output voltage selections
Test points for accurate ripple and transient response waveforms
EVM layout provides an example of proper board layout for rated isolation and EMI performance

High efficiency, isolated power transfer of up to 500mW
The design is tested and provides all the options to validate the UCC12050, including an easy-to-follow User's Guide
