Texas Instruments SN74LVC1G14/SN74LVC1G14-Q1 Inverters
Texas Instruments SN74LVC1G14/SN74LVC1G14-Q1 Single Schmitt-Trigger Inverters perform the Boolean function Y=A and additionally support a 1.65V to 5.5V VCC operation. The device contains one independent inverter with Schmitt-trigger inputs allowing different input threshold levels for positive-going (VT+) and negative-going (VT–) signals. This provides hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. NanoFree™ package technology uses the die as the package, offering a major breakthrough in IC packaging concepts. The Ioff circuitry disables the outputs when the device is powered down, making the SN74LVC1G14/SN74LVC1G14-Q1 fully specified for partial-power-down applications. The SN74LVC1G14-Q1 devices are AEC-Q100 qualified for automotive applications.
Features
- Latch-up performance exceeds 100mA Per JESD 78, Class II
- ESD Protection exceeds JESD 22
- 2000V Human-body model (A114-A)
- 200V Machine model (A115-A)
- 1000V Charged-device model (C101)
- Available in the Texas Instruments NanoFree™ package
- Supports 5V VCC operation
- Inputs accept voltages to 5.5V
- Max tpd of 4.6ns at 3.3V
- Low power consumption, 10µA Max ICC
- ±24mA Output drive at 3.3V
- Ioff Supports partial-power-down mode operation
Applications
- AV Receiver
- Audio Dock: portable
- Blu-ray player and home theater
- Embedded PC
- MP3 Player/recorder (Portable audio)
- Personal Digital Assistant (PDA)
- Power: Telecom/server AC/DC supply: Single
- Controller: analog and digital
- Solid State Drive (SSD): Client and enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Tablet: enterprise
- Video analytics: server
- Wireless headset, keyboard, and mouse
Datasheets

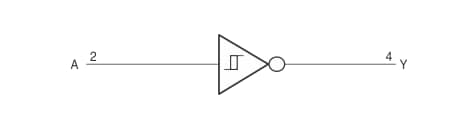

Functional Diagram
