STMicroelectronics EVL012LED 200W LED Driver using the STNRG012

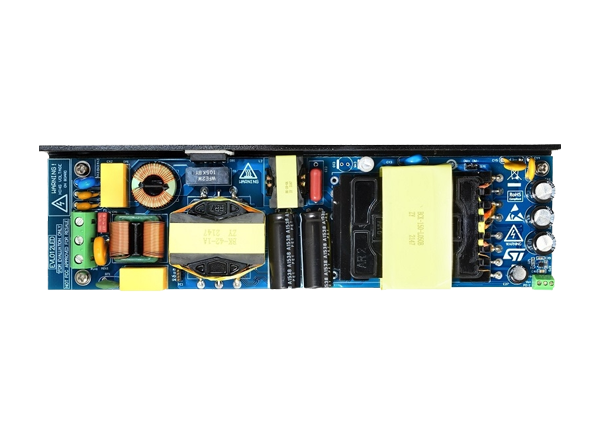

STMicroelectronics EVL012LED 200W LED Driver using the STNRG012 is an LED driver board based on a two-stage approach. It has a front-end PFC pre-regulator and a downstream resonant half-bridge converter. The EVL012LED uses the STNRG012 IC that embeds the controllers of both sections in the same device. The STNRG012 features high efficiency, low power consumption at no load without an auxiliary supply, good power factor with low harmonic content, and reduced part count.

Features

90…277 VAC - frequency 45 ÷ 65Hz universal input main range
200W maximum output power
3.6A max. constant current output
36 ÷ 56VDC output voltage range
Mains harmonics according to EN61000-3-2 Class-C, JEITA-MITI Class-C
< 0.5W no load mains consumption
No auxiliary stage
> 93% at full load efficiency
< 7.5% at 230 VAC from 30% to 100% of full load THD

Conducted EMC according to EN55022-class-B limits
Safety according to EN60950
Dimensions 210mm x 55mm x 15mm, (L x W x H)
PCB dual layer, 35 μm, FR-4, mixed PTH/SMT
Dimming analog from 100% to less than 10% with 100k ohm potentiometer or 0-10V external voltage
Feedback loops constant current and constant voltage
Protections input brown-in/out, PFC saturation and PFC OVP LLC capacitive mode, OCP LED output overload and short-circuit, LED string open, feedback disconnections
