Qorvo QPA2609DEVB1 Evaluation Board
Qorvo QPA2609DEVB1 Evaluation Board is a 3-layer PCB board designed to evaluate the QPA2609D 7–14GHz Low Noise Amplifiers. The QPA2609DEVB1 Evaluation Board is fully tested and assembled. PCB-level tuning at the input side is recommended for optimal performance of the QPA4501EVB01 Evaluation Board.
Board Layout

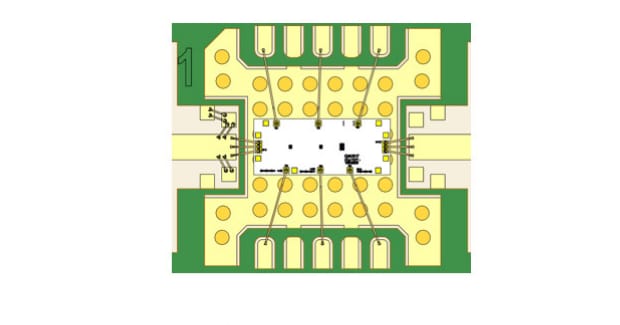

Mounting Pad
Associated Content
Qorvo QPA2609D 7–14GHz Low Noise Amplifiers
High-performance MMIC amplifiers created in Qorvo’s production 90nm pHEMT process (QPHT09).
Publicado: 2018-09-14
| Actualizado: 2022-03-10
