Molex Conectores placa a placa SSB6 SlimStack™
Los conectores placa a placa SSB6 SlimStack™ de Molex son perfectos para aplicaciones de empaquetado ajustado. Estos conectores de paso fino de 0,35 mm ofrecen el máximo ahorro de espacio, guiado de emparejamiento y un contacto mecánico y eléctrico seguro para todos los tipos de dispositivos móviles. Estos conectores de ultra bajo perfil tienen una altura de tan solo 0,60 mm y una anchura de 2,0 mm. Estos conectores son perfectos para utilizarlos en dispositivos móviles y aplicaciones médicas.
Características
- Ultra low profile, short length and narrow width
- Offers maximum space savings
- Dual contact design
- Provides secure electrical and mechanical reliability even after repeat cycling
- Wide alignment area housing lead-in
- Facilitates mating for more efficient operator assembly
- Housing canopy cover
- Provides an anti-zippering barrier that prevents contact pullout from angled unmating
- Contact design with audible and tactile mating features
- Provides operators with maximum mating assurance
- Wide vacuum pick-and-place area
- Accommodates automatic board placement even with narrow width
Aplicaciones
- Mobile devices
- Smart phones
- Tablet PCs
- Portable audio
- Portable navigation equipment
- Medical
- Patient monitoring
- Therapeutic and surgical
Especificaciones
- 0.15N contact retention to housing
- 60N max. mating force
- 7.5N min. unmating force
- 30 cycles durability (min.)
- 50V voltage (max.)
- 0.3A current (max.)
- 80mΩ max. contact resistance
- 250VAC (rms) dielectric withstanding voltage
- 100MΩ min. insulation resistance

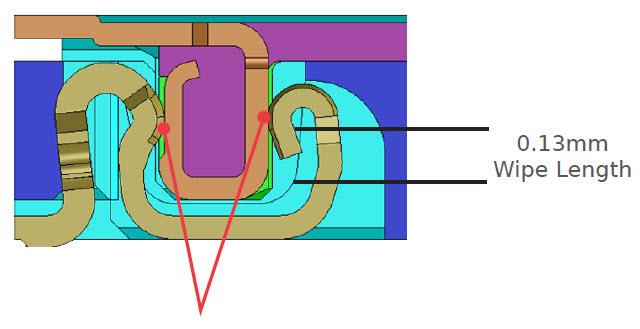

Dual Contact Design for Secure Reliability

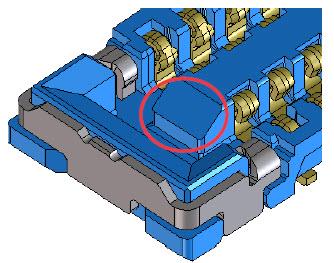

Easy Mating with Wide Alignment Area
Strong Click Feeling
