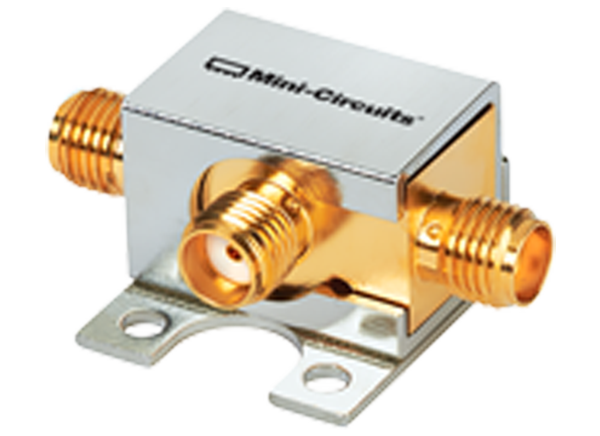

Mini-Circuits ZX75BP-893-S+ Coaxial-Ceramic Resonator Filter offers low insertion loss in a small form factor with an HY1238 case style. This 50Ω filter utilizes ceramic material with a high dielectric constant and superior Q factor. The technology enables the construction of bandpass and bandstop filters, diplexer, and multiplexer designs. The ZX75BP-893-S+ is ideally suited for transmitter and receiver signal chains due to the low insertion loss combined with excellent power handling. Mini-Circuits ZX75BP-893-S+ Coaxial-Ceramic Resonator Filter is built with rugged construction to withstand multiple demanding reflow cycles. Applications include aviation, cellular services, defense systems, and more.
Low insertion loss with excellent power handling
Fractional bandwidth from <1 to 25%
Excellent temperature stability
Rugged construction to handle demanding environmental conditions
Wide spur-free stopband for better receiver sensitivity
High selectivity for better adjacent channel rejection and dynamic range
