Mini-Circuits KMR-24F+ Right-Angle Coaxial Adapter
Mini-Circuits KMR-24F+ Right-Angle Coaxial Adapter converts a 2.4mm (F) connector to a 2.92mm (M) connector, supporting applications from DC to 40.0GHz. This device provides excellent voltage standing wave ratio (VSWR), low insertion loss, and flat response versus frequency. Mini-Circuits KMR-24F+ features passivated stainless steel construction and a gold-plated beryllium copper construction center contact.
Features
- DC to 40.0GHz ultra-wideband
- Flat response
- Converts 2.4mm (F) connector to a 2.92mm (M) connector
- Excellent VSWR, 1.09:1 typical VSWR
- Low insertion loss, 0.16dB typical
- -55°C to +100°C operating temperature range
- Passivated stainless steel construction and gold-plated beryllium copper center contact
Applications
- RF cable and equipment connections
- Broadband and multiband
Technical Resources

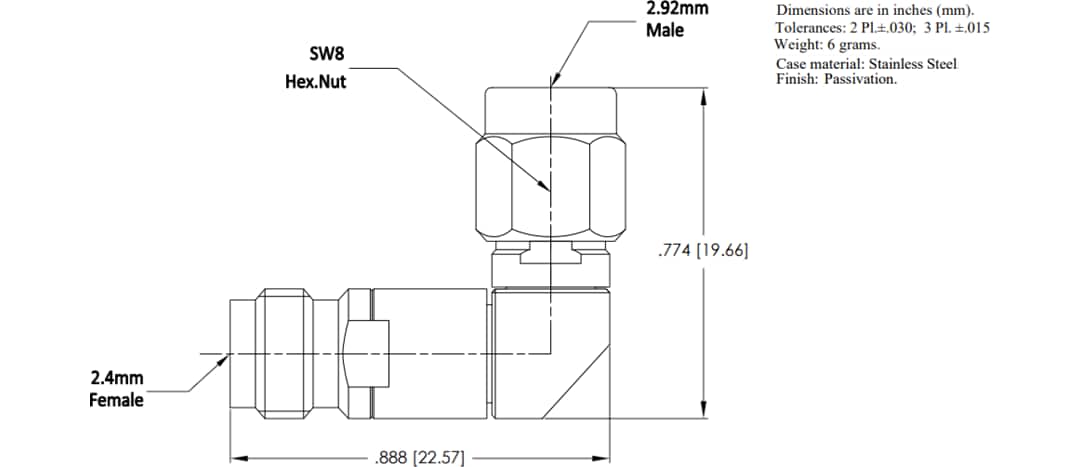

Outline Dimensions
Publicado: 2020-06-30
| Actualizado: 2024-05-10
