Mikroe Magneto 9 Click

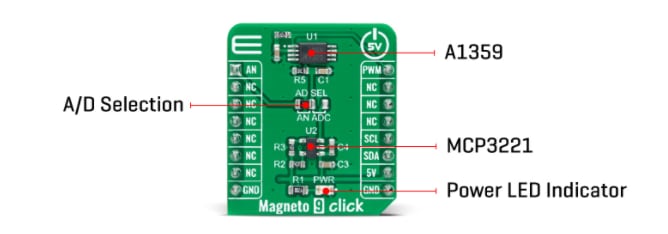

Mikroe Magneto 9 Click features the Allegro MicroSystems A1359, dual tracking output linear hall-effect sensor. The Magneto 9 Click provides factory-programmed offset, a dual-output (analog and PWM), forward polarity, and signal processing in analog and digital form. The Magneto 9 Click operates with a 5V logic voltage level. The board must perform appropriate logic voltage level conversion before use with MCUs with different logic levels.
Features
- On-board modules
- Allegro MicroSystems A1359 dual tracking output linear hall-effect sensor
- Low power consumption
- Factory-programmed offset
- Sensitivity and polarity
- Dual-output (analog and PWM)
- Accuracy
- Forward polarity
- Signal processing in analog and digital form
- Analog, I2C, PWM Interface
- mikroBUS™ compatibility
- 5V input voltage
Applications
- Automotive and industrial applications
- Displacement and angular position
