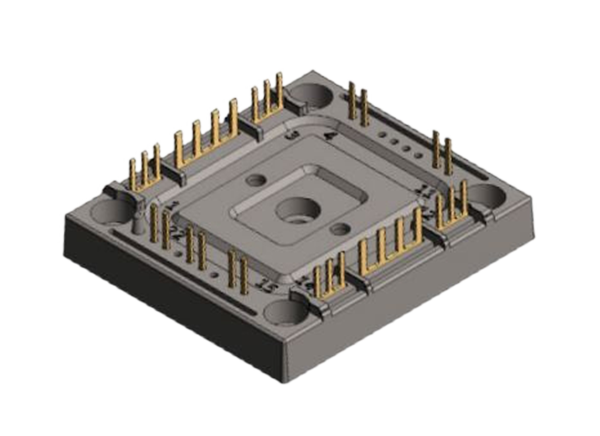

Microchip Technology MSCSM120x MOSFET Power Modules

Microchip Technology MSCSM120x MOSFET Power Modules are high-efficiency converters that feature Si3N4 substrate with thick copper for improved thermal performance. These modules offer a low profile, direct mounting to the heatsink (isolated package), an internal thermistor for temperature monitoring, and an extended temperature range. The MSCSM120x modules operate at 1.2kV reverse voltage (VR), -10V to 25V gate-source voltage range (VGS), 310W/560W power dissipation (PD), and 79A/150A continuous drain current (ID). These modules are used in applications such as high-reliability power systems, high-efficiency AC/DC and DC/AC converters, motor control, and AC switches.

Features

  • SiC power MOSFET:
    • Low RDS(ON)
    • High-speed switching
  • SiC Schottky diode:
    • Zero reverse recovery
    • Zero forward recovery
    • Temperature independent switching behavior
    • Positive temperature coefficient on VF
  • Ultra-low weight and profile
  • Kelvin source for easy drive
  • Si3N4 substrate with thick copper for improved thermal performance
  • Internal thermistor for temperature monitoring
  • Extended temperature range
  • High-efficiency converter
  • Outstanding performance at high-frequency operation
  • Direct mounting to the heatsink (isolated package)
  • RoHS compliant
  • Solderable terminals both for power and signal for easy PCB mounting
  • Integrated power conversion system

Specifications

  • 1.2kV reverse voltage (VR)
  • -10V to 25V gate-source voltage range (VGS)
  • 310W/560W power dissipation (PD)
  • 79A/150A continuous drain current (ID)
  • 30ns rise time
  • 25ns fall time
  • 16mΩ/31mΩ RDS(ON) drain-source resistance
  • -55°C to 175°C operating temperature range

Applications

  • High-reliability power systems
  • High-efficiency AC/DC and DC/AC converters
  • Motor control
  • AC switches
Publicado: 2021-10-05 | Actualizado: 2022-03-11
