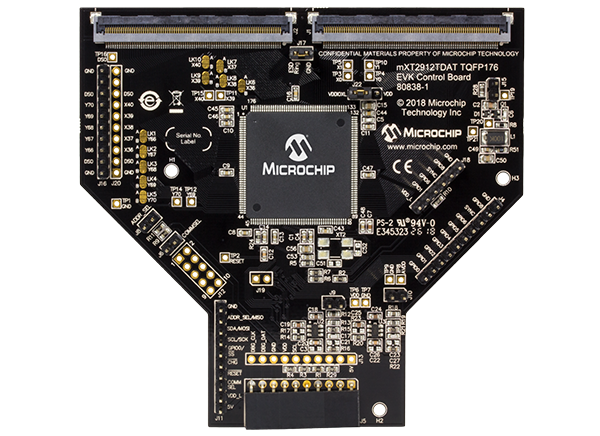

Microchip Technology ATMXT2912TDAT-SPI-PCB Development Tool is designed for the evaluation and development of Microchip maXTouch applications. The applications use the ATMXT2912TD touchscreen sensor IC.
ATMXT2912TDAT-SPI-PCB designed to evaluate maXTouch applications
I2C slave with support for standard mode (up to 100kHz), fast mode (up to 400kHz), and fast-mode plus (up to 1MHz)
SPI slave (up to 8MHz)
Interrupt to indicate when a message is available
SPI debug interface to read the raw data for tuning and debugging purposes
