Microchip Technology ATEVK-MXT2x Evaluation Kits

Microchip Technology ATEVK-MXT2x Evaluation Kits are demonstration and development platforms for the ATMXT2113TD and ATMXT2912TD touchscreen sensor ICs. The ATEVK-MXT2113TDAT kits include a 13.3-inch touchscreen assembly and an ATMXT2113TDAT mounted PCB. The ATEVK-MXT2912TDAT kits come with a 15.6-inch touchscreen display and an ATMXT2912TDAT mounted PCB. The ATEVK-MXT2x evaluation kits offer self-adhesive feet, a USB memory stick, a USB cable, and support all versions of Windows.

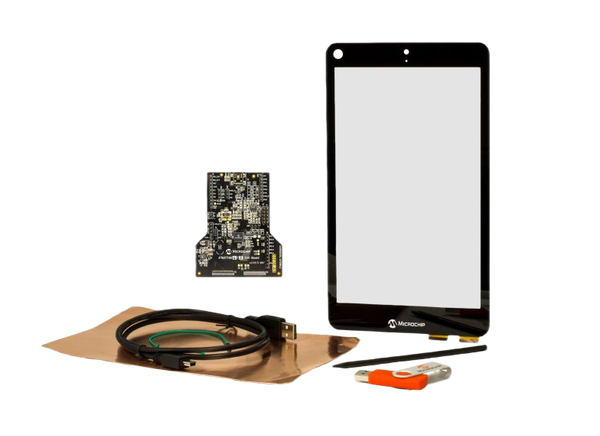

Kit Contents

8x self-adhesive feet
1x USB memory stick
1x USB cable
I²C versions:
- 1x ATUSB-I2C-AUTO-PCB
- ATEVK-MXT2113TDAT-A:
  - 1x 13.3-inch touchscreen assembly
  - 1x ATMXT2113TDAT PCB
- ATEVK-MXT2912TDAT-A:
  - 1x 15.6-inch touchscreen assembly
  - 1x ATMXT2912TDAT PCB

SPI versions:
- 1x ATUSB-HSBB-PCB
- 1x ATAUTO-SPI-CABLE
- ATEVK-MXT2113TDAT-B:
  - 1x 13.3-inch touchscreen assembly
  - 1x ATMXT2113TDAT PCB
- ATEVK-MXT2912TDAT-B:
  - 1x 15.6-inch touchscreen assembly
  - 1x ATMXT2912TDAT PCB
