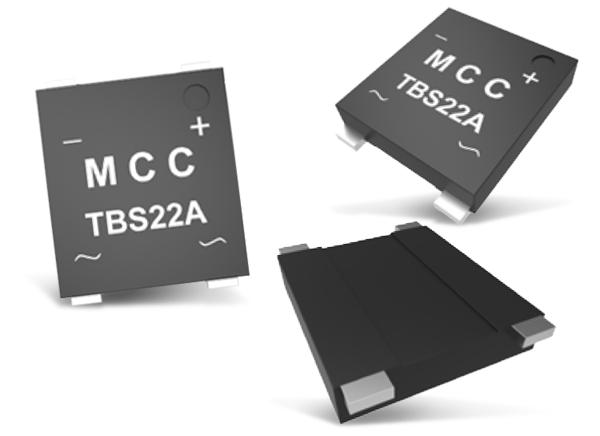

MCC TBS Single-Phase Bridge Rectifiers feature a glass passivated chip with a high surge forward current capability (2A or 2.2A). These rectifiers meet the UL 94V-0 flammability rating and have a moisture sensitivity level (MSL) of 1. The TBS Single-Phase Bridge Rectifiers offer a 50V to 1000V range with a -55°C to +150°C temperature range.
Glass passivated chip
High surge forward current capability
Halogen-free available by adding the suffix "-HF"
Epoxy meets UL 94V-0 flammability rating
Moisture Sensitivity Level (MSL) 1
Lead-free finish and RoHS compliant ("P" suffix designates compliance)
-55°C to +150°C temperature range
Typical thermal resistance
+10°C/W junction to case
+15°C/W junction to lead
+55°C/W junction to ambient
50V to 1000V maximum recurrent peak reverse voltage range
