Ledil ADELIA-70 LED Lighting Reflectors

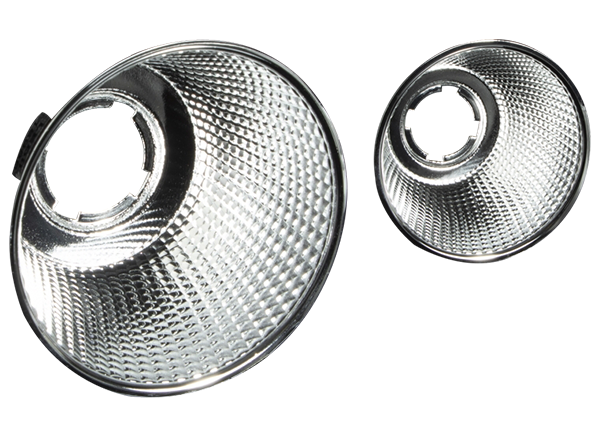

LEDiL ADELIA-70 LED Lighting Reflectors are premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality. These reflectors include multiple sizes and from spot to extra wide beam angles. The ADELIA-70 LED lighting reflectors can take any track or downlight luminaires with a wide range of compatible connectors and LEDiL original accessories. Ideally, these lighting reflectors are used in retail and indoor architectural applications.

Features

  • Ø70mm variant optimized for Chip On Board (COB)
  • 14.5mm Light-Emitting Surface (LES) size
  • 69.7mm dimensions
  • 42.80mm height
  • RoHS compliant

Applications

  • Retail
  • Indoor architectural

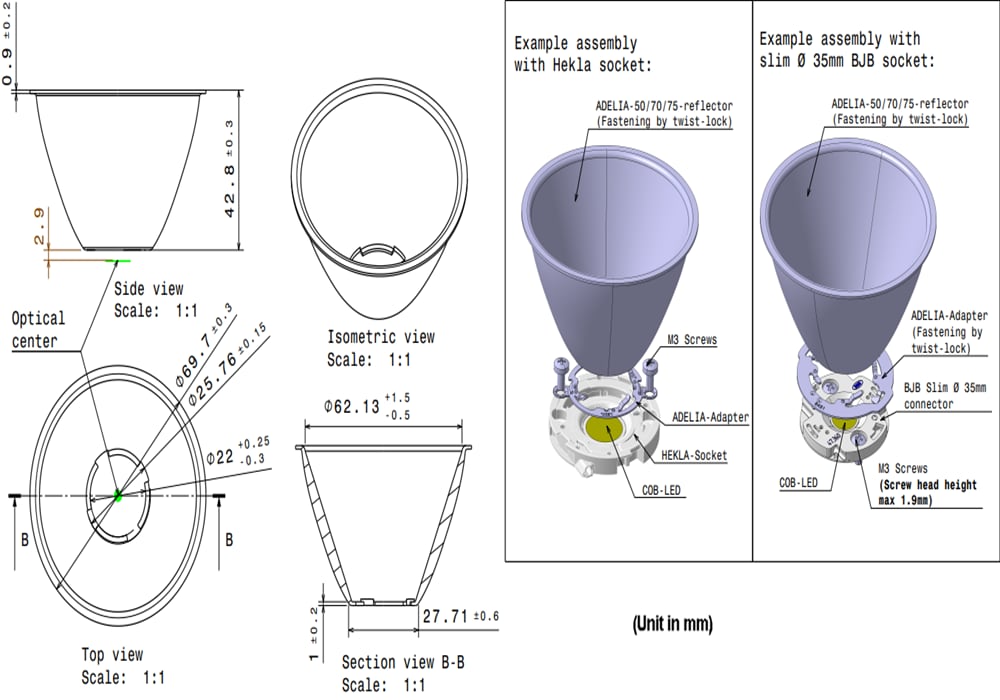

Mechanical Drawing

Mechanical Drawing - Ledil ADELIA-70 LED Lighting Reflectors

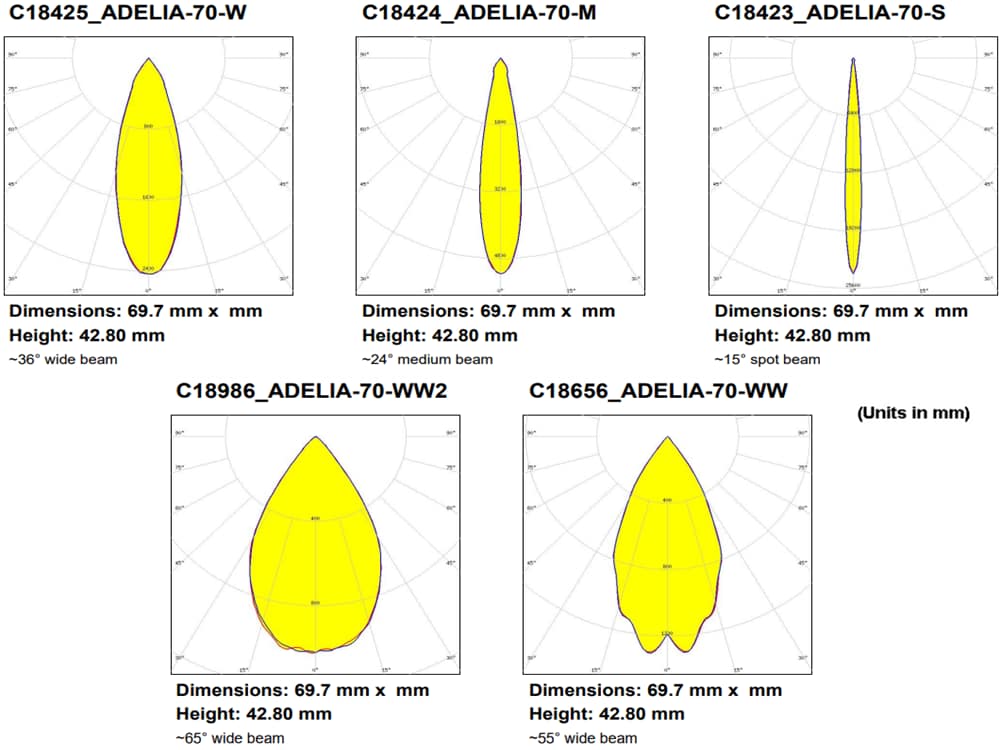

Dimensions Diagram

Ledil ADELIA-70 LED Lighting Reflectors

Associated Products

C18x ADELIA LED Lighting Mounting Accessories

Ledil C18x ADELIA LED Lighting Mounting Accessories

Base part for ADELIA reflectors and are RoHS and REACH compliant.

Learn Moreacerca de Ledil C18x ADELIA LED Lighting Mounting Accessories View Productsrelacionado con Ledil C18x ADELIA LED Lighting Mounting Accessories
ADELIA-110 LED Lighting Reflectors

Ledil ADELIA-110 LED Lighting Reflectors

Premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality

Learn Moreacerca de Ledil ADELIA-110 LED Lighting Reflectors View Productsrelacionado con Ledil ADELIA-110 LED Lighting Reflectors
ADELIA-75 LED Lighting Reflectors

Ledil ADELIA-75 LED Lighting Reflectors

Premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality

Learn Moreacerca de Ledil ADELIA-75 LED Lighting Reflectors View Productsrelacionado con Ledil ADELIA-75 LED Lighting Reflectors
ADELIA-50 LED Lighting Reflectors

Ledil ADELIA-50 LED Lighting Reflectors

Premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality

Learn Moreacerca de Ledil ADELIA-50 LED Lighting Reflectors View Productsrelacionado con Ledil ADELIA-50 LED Lighting Reflectors
View Results ( 6 ) Page
Número de referencia Hoja de datos Descripción Ángulo de visionado Altura Cantidad estándar de paquetes
C19523_ADELIA-70-W2 Reflectores de iluminación LED ADELIA-70-W2 ALUM REFLECTOR 48 DEG WIDE BEAM 50 deg 42.8 mm 52
C18986_ADELIA-70-WW2 Reflectores de iluminación LED 70mm 65 DEGREE WIDE BEAM 65 deg 42.8 mm 50
C18424_ADELIA-70-M Reflectores de iluminación LED 70mm 24 DEGREE MEDIUM BEAM 24 deg 42.8 mm 70
C18423_ADELIA-70-S Reflectores de iluminación LED 70mm 15 DEGREE SPOT BEAM 15 deg 42.8 mm 70
C18425_ADELIA-70-W Reflectores de iluminación LED 70mm 36 DEGREE WIDE BEAM 36 deg 42.8 mm 70
C18656_ADELIA-70-WW Reflectores de iluminación LED 75mm 55 DEGREE WIDE BEAM 55 deg 42.8 mm 60
