KYOCERA AVX 180R NPO Porcelain Ultra-Low ESR RF/Microwave Caps

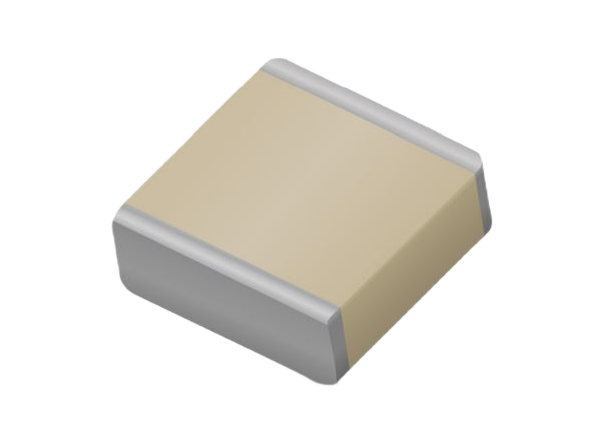

KYOCERA AVX 180R NPO Porcelain Ultra-Low ESR RF/Microwave Capacitors offer high Q, high self-resonance, and ultra-stable performance characteristics in a 1.78mm x 2.29mm x 2.92mm case R size. The 180R components offer a 0.5pF to 100pF capacitance range, 500VDC working voltage, and -55°C to +175°C operating temperature range. KYOCERA AVX 180R NPO Porcelain Ultra-Low ESR RF/Microwave Capacitors are available in horizontal or vertical electrode orientations, making them ideal for a range of RF/microwave applications.

Features

  • Case R size, 1.78mm x 2.29mm x 2.92mm (0.070" x 0.090" x0.115") (LxWxT)
  • 0.5pF to 100pF capacitance range
  • 500WVDC working voltage
  • Low ESR/ESL
  • Horizontal or vertical electrode orientations
  • High Q
  • Ultra-stable performance
  • High self-resonance
  • RoHS compliant

Applications

  • Functional
    • Bypass
    • Coupling
    • Tuning
    • Feedback
    • Impedance matching
    • DC blocking
  • Circuit
    • RF power amplifiers
    • Filters
    • Oscillators
    • Timing circuits
    • Delay lines

Specifications

  • >10,000Q at 1MHz quality factor
  • Temperature coefficient of capacitance
    • 0±30PPM/°C in the -55°C to +125°C range
    • 0±60PPM/°C in the +125°C to +175°C range
  • ±0.1pF, ±0.25pF, ±0.5pF, ±2%, ±5%, ±10%, and ±20% capacitance tolerance options
  • -55°C to +175°C operating temperature range, no derating of the working voltage
  • ±(0.02% or 0.02pF) capacitance drift, whichever is greater
  • 500WVDC working voltage
  • Insulation resistance
    • 106MΩ minimum at +25°C at the rated WVDC
    • 105MΩ minimum at +125°C at the rated WVDC
    • 104MΩ minimum above +125°C
  • 2000-hour life at +125°C with 200% WVDC applied per MIL-STD-202, Method 108
