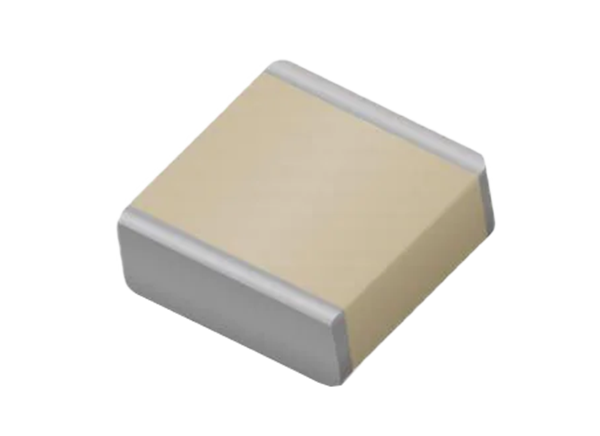

KYOCERA AVX 700E NPO Porcelain High RF Power Multilayer Caps

KYOCERA AVX 700E NPO Porcelain High RF Power Multilayer Capacitors are high Q multilayer capacitors that offer ultra-stable performance in high RF current and high voltage applications with NPO performance. High-density porcelain construction provides a rugged, hermetic package. The 700E NPO Porcelain High RF Power Multilayer Capacitors offer capacitance options from 1pF to 2200pF with a -55°C to +125°C operating temperature range. An encapsulated option is also available for applications requiring extended protection against arc-over and corona.

Features

  • Case E Size, 0.380” x 0.380”
  • Extended WVDC up to 7200VDC
  • Low ESR/ESL
  • High Q
  • High RF power
  • Ultra-stable performance
  • High RF current/voltage
  • Encapsulated option available, leaded styles only
  • RoHS compliant

Applications

  • Circuit
    • HF/RF power amplifiers
    • Transmitters
    • Antenna tuning
    • Plasma chambers
    • Medical (MRI coils)
  • Bypass
  • Coupling
  • Tuning
  • Impedance matching
  • DC blocking

Specifications

  • 1pF to 2200pF capacitance range
  • 500VDC to 7.2kVDC voltage range
  • -55°C to +125°C operating temperature range
  • ±30PPM/°C temperature coefficient
  • Horizontal or vertical electrode orientation
