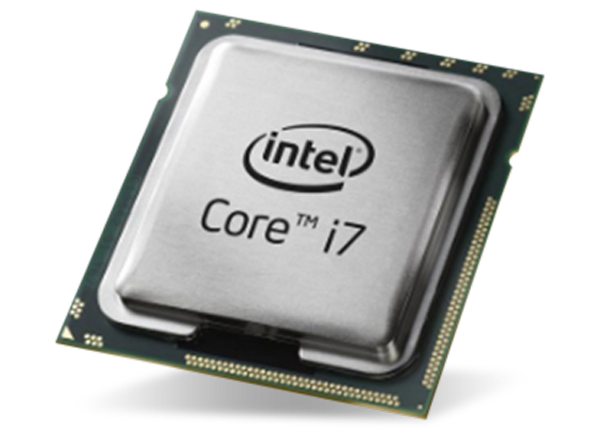

Intel 4th Generation i7 Processors

Intel 4th Gen Core Series i7 Desktop Processor delivers a 64-bit, multi-core processor built on 22-nanometer process technology. Intel 4th Generation Core Series i7 Processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). The processors are designed to be used with the Intel 8 Series chipset. Intel HD Graphics 4600 are included in the processor, along with virtualization technology, a new Haswell instruction set, and new anti-theft and identity protection technology.


  • General Specifications
    • Cores: 2
    • Threads: 4
    • Clock speed up to 3.4GHz
    • Max turbo frequency up to 3.9GHz
    • 64-bit instruction set
    • Instruction set extensions include SSE 4.1/4.2 and AVX 2.0
    • Sockets supported are FCBGA1168, FCLGA1150 and FCPGA946
    • Lithography: 22nm
    • Max TDP: 15W
  • Memory Specifications
    • Max memory size (dependent on memory type) of up to 32GB
    • Memory types include DDR3L-1333/1600 and LPDDR3-1333/1600
    • Two memory channels
    • Max memory bandwidth of 25.6GB/s
  • I/O Specifications
    • USB Revision: 3.0
    • USB ports: 4
    • Total SATA ports: 4
    • Integrated LAN
    • General purpose IO
    • UART
    • SATA 6.0Gb/s ports: 4
  • Graphics Specifications
    • Processor Graphics: Intel HD graphics 4600 or 5000
    • Graphics base frequency of up to 400MHz
    • Graphics max dynamic frequency of up to 1.35GHz
    • Graphics Output: eDP/DP/HDMI/VGA
    • Intel Quick Sync Video
    • Intel InTru™ 3D technology
    • Intel Insider™
    • Intel Wireless Display
    • Intel Flexible Display Interface (Intel FDI)
    • Intel Clear Video HD Technology
    • Three displays supported


  • Intel Turbo Boost Technology: 2.0
  • Intel vPro Technology
  • Intel Hyper-Threading Technology
  • Intel Virtualization Technology (VT-x)
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Intel VT-x with Extended Page Tables (EPT)
  • Intel Trusted Execution Technology
  • AES New Instructions
  • Intel TSX-NI
  • Intel 64
  • Idle States
  • Enhanced Intel SpeedStep® Technology
  • Thermal Monitoring Technologies
  • Intel Active Management Technology
  • Intel AMT Version: 9.5
  • Intel HD Audio Technology
  • Intel Matrix Storage Technology
  • Execute Disable Bit
  • Intel Secure Key
  • Intel Identity Protection Technology
  • Intel Rapid Storage Technology
  • Intel Smart Connect Technology
