Infineon Technologies Power Start Modules

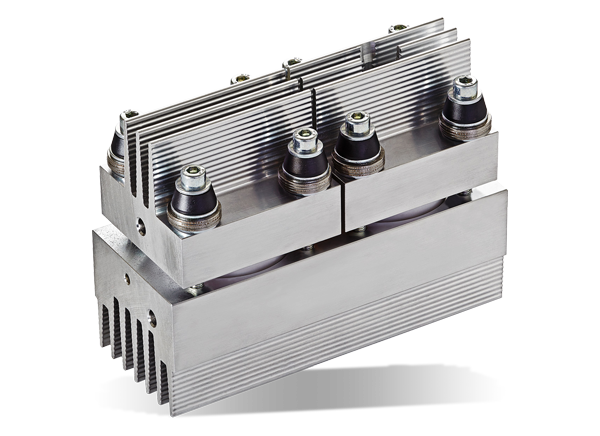

Infineon Technologies Power Start Modules are a complete portfolio for soft start applications with a slim footprint (55mm). This allows more contactor-compatible designs (LxWxH 134x55x100mm) in comparison to existing soft starter solutions. Infineon Power Start modules include an integrated heatsink, and can be mounted without thermal grease.
Features
- Three slim foot-prints
- Reduction to essential components
- Integrated heatsink & no thermal grease
- Thermal capacity directly coupled to silicon
- Double side cooling
- Less complexity – one fits all
- Easy mounting
- Faster time-to-market
- Power to price ratio for cost-sensitive applications
Applications
- Belt conveyors
- Big fans
- Mills
- Pumps for water and wastewater
- Pumps for oil production

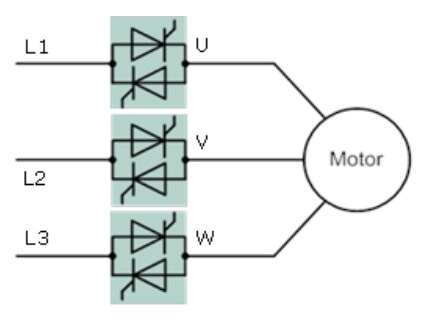

Block Diagram

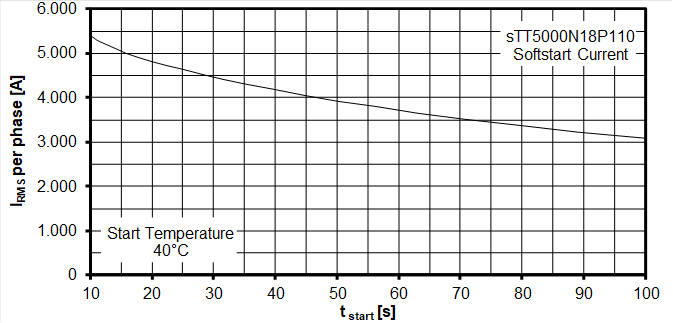

Soft Start Current Graph
