FRAMOS FPA-4.A/AGX-Kit Processor Adapter Kit

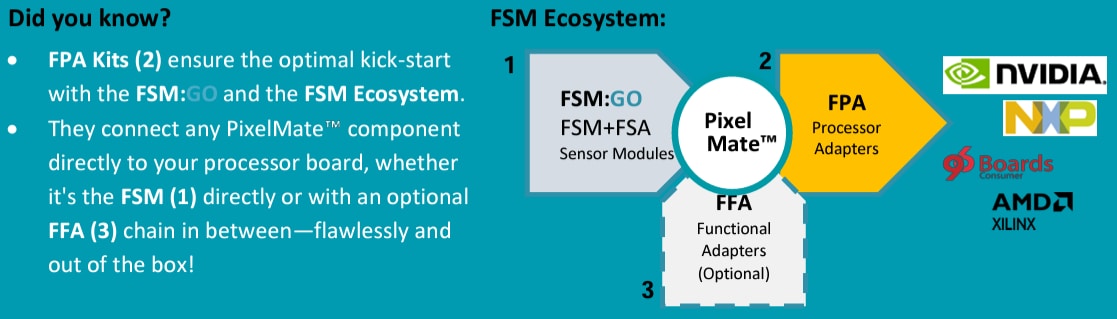

FRAMOS FPA-4.A/AGX-Kit Processor Adapter Kit includes all components required to connect a FRAMOS Sensor Module (FSM:GO, FSM:FSA) either directly or via an FFA Kit. FPA-4.A/AGX-Kit is compatible with all NVIDIA Jetson AGX Developer Kits and 3rd party boards that utilize the same 120-pin FMC/mezzanine connector and pinout. Comprehensive support is provided for all Sensor Modules in the NVIDIA Jetson family, offering reference implementations of MIPI CSI-2 (D-PHY) drivers and example ISP configurations. The software package enables embedded software engineers to access the communication and streaming system, ensuring optimal image capture in memory. All sensor drivers and device tree overlays are open source, enabling customization and extension to meet the specific requirements of any application.

Features

Includes everything needed to get started with the NVIDIA Jetson AGX developer kits
Versatile compatibility
Includes an adapter, cabling, and mounting material for four sensor modules
Synchronization and timing signal access

Four Pixelmate™ interfaces with a 4-lane MIPI CSI-2 each
Test points to all other sensor signals
Enhanced signal management
Flexible interfaces
Dynamic configuration
Robust design

Applications

Embedded vision systems
Artificial intelligence and machine learning

Industrial automation
Robotics and drones

Kit Contents

FPA-4.A/AGX-V1 - Quad PixelMate™ FPA for NVIDIA Jetson AGX developer kits (four PixelMate, MIPI CSI-2)
FMA-CBL-MPB125-150/5 - FPA sync cable, two Picoblade (1.25mm/5-pin), 150mm

FMA-FC-150/60-V1 (4 pcs) - Flex cable 150mm for PixelMate™ MIPI CSI-2
FMA-SCW/01-KIT (2 pcs) - Screws/spacers for direct stacking of two FSM/FFA (four mounting holes)
