ECS ECX-1637B SMD Crystals

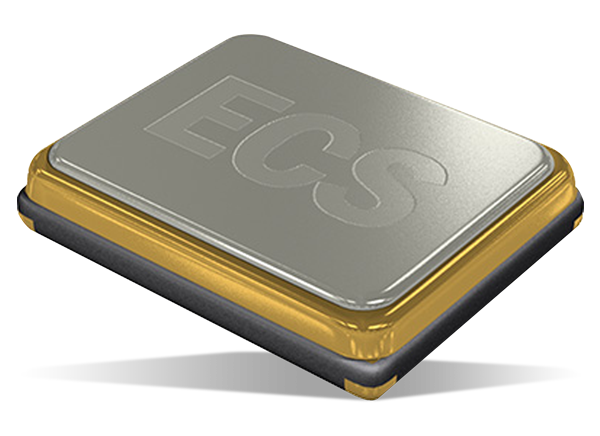

ECS ECX-1637B SMD Crystals are available in a subminiature ceramic package measuring 2.0mm x 1.6mm x 0.45mm. These crystals feature low first-year aging of ±1ppm or ±2ppm maximum, a 16MHz to 96MHz frequency range, and 3pF shunt capacitance. This series is RoHS compliant and offers extended temperature range options. ECS ECX-1637B SMD Crystals are ideal for wireless applications, including the Internet of Things (IoT), medical, Wi-Fi®, and BLUETOOTH®.
Features
- Low profile
- 2.0mm x 1.6mm x 0.45mm ceramic package
- Low first-year aging of ±1ppm or ±2ppm maximum
- 16MHz to 96MHz frequency range
- 3pF shunt capacitance
- 100µW drive level
- Extended temperature range options
- RoHS compliant
Applications
- Wireless
- IoT
- Medical
- Wi-Fi
- Bluetooth

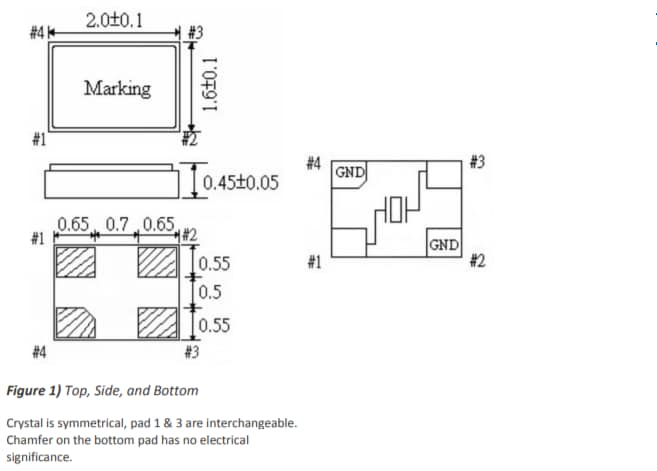

Dimensions (mm)
Datasheets
Related Crystals
ECS ECX-2236B SMD Crystals
Low first-year aging of ±1ppm, 2.5mm x 2.0mm footprint, 12MHz to 50MHz frequency range.
ECS ECX-1637B2 SMD Crystals
Offers low first-year aging of ±2ppm and comes in a compact 2.0mm x 1.6mm x 0.45mm ceramic package.
