Coto Technology 9105 Hi-Voltage SMD & DIP Reed Relays

Coto Technology 9105 Hi-Voltage SMD and DIP Reed Relays are designed for applications requiring high reliability and superior electrical isolation. These relays can switch up to 1kV, with a breaking voltage of up to 4.25kV and dielectric strength voltages of 7kV. The 9105 reed relays feature hermetically sealed contacts to ensure long life and consistent performance. These relays are available in both Surface Mount (SMD) and DIP packages, with optional coil suppression diodes for added circuit protection. The 9105 relays are ideally used in solar systems, Battery Management Systems (BMS), EV, automotive, medical, instrumentation, process control, and telecommunications.

Features

  • High voltage switching up to 1000V
  • High dielectric strength up to 7000V
  • High insulation resistance of 1012
  • High reliability and hermetically sealed contacts for long life
  • High-speed switching compared to electromechanical relays
  • Molded thermoset body on integral lead frame design
  • Optional coil suppression diode to protect coil drive circuits
  • Gold-plated terminals
  • In compliance with IEC 60664-1 standard
  • RoHS certified

Applications

  • Solar systems
  • Battery Management Systems (BMS)
  • EV/Automotive
  • Automated Test Equipment (ATE)
  • Medical
  • Instrumentation
  • Process control
  • Telecommunications

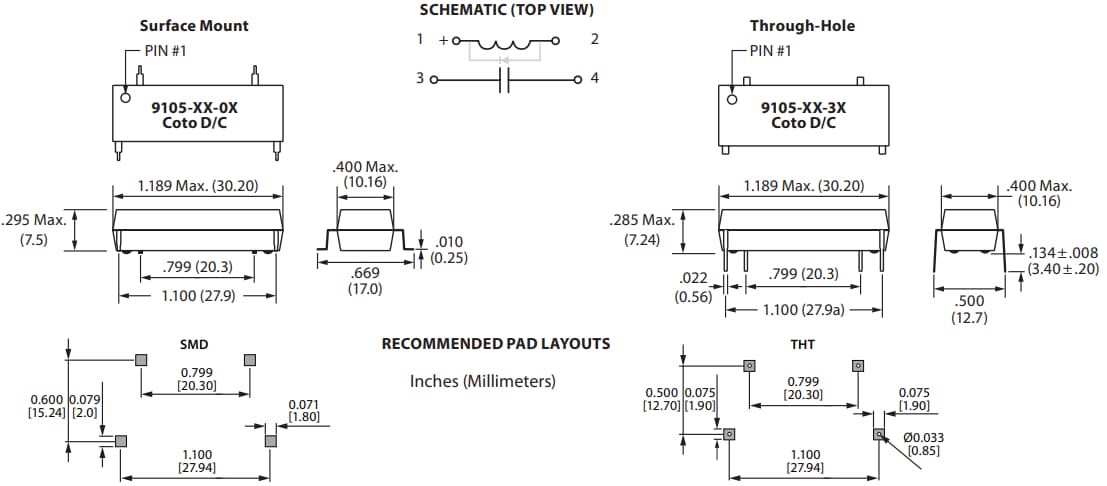

Dimensions

Mechanical Drawing - Coto Technology 9105 Hi-Voltage SMD & DIP Reed Relays
View Results ( 12 ) Page
Número de referencia Hoja de datos Resistencia de la bobina Voltaje de la bobina Diodo de supresión de la bobina Tensión del interruptor Corriente conmutada máxima Estilo de terminación Empaquetado RoHS - Mouser
9105-05-00TR 9105-05-00TR Hoja de datos 140 Ohms 5 VDC No Diode 1 kVAC/DC 1 A SMD/SMT Reel Y
9105-05-30 9105-05-30 Hoja de datos 140 Ohms 5 VDC No Diode 1 kVAC/DC 1 A Through Hole Tube Y
9105-05-00 9105-05-00 Hoja de datos 140 Ohms 5 VDC No Diode 1 kVAC/DC 1 A SMD/SMT Tube Y
9105-05-01 9105-05-01 Hoja de datos 140 Ohms 5 VDC Diode 1 kVAC/DC 1 A SMD/SMT Tube Y
9105-05-01TR 9105-05-01TR Hoja de datos 140 Ohms 5 VDC Diode 1 kVAC/DC 1 A SMD/SMT Reel Y
9105-05-31 9105-05-31 Hoja de datos 140 Ohms 5 VDC Diode 1 kVAC/DC 1 A Through Hole Tube Y
9105-12-00 9105-12-00 Hoja de datos 475 Ohms 12 VDC No Diode 1 kVAC/DC 1 A SMD/SMT Tube Y
9105-12-00TR 9105-12-00TR Hoja de datos 475 Ohms 12 VDC No Diode 1 kVAC/DC 1 A SMD/SMT Reel Y
9105-12-01 9105-12-01 Hoja de datos 475 Ohms 12 VDC Diode 1 kVAC/DC 1 A SMD/SMT Tube Y
9105-12-01TR 9105-12-01TR Hoja de datos 475 Ohms 12 VDC Diode 1 kVAC/DC 1 A SMD/SMT Reel Y
