Apogee Semiconductor AP54RHC301 Rad-Hard Dual 3-Input Majority Voters

Apogee Semiconductor AP54RHC301 Rad-Hard Dual 3-Input Majority Voters are designed for space, medical imaging, and other applications requiring radiation tolerance and high reliability. The radiation-hardened by design AP54RHC301 Dual 3-Input Majority Voters are fabricated in a 180nm CMOS process. These voters deliver high resiliency to single-event effects (SEE) and to a total ionizing dose (TID) up to 30krad (Si). The AP54RHC301 is available in an SMD TSSOP-14 package with an extended operating temperature range of -55°C to 125°C. These voters are designed for space, medical imaging, and other radiation tolerance applications.

The AP54RHC301 Rad-Hard Dual 3-Input Majority Voters are part of the AP54RHC logic family operating across a voltage supply range of 1.65VDC to 5.5VDC. These voters support zero-power penalty™, cold-sparing, and Class 2 ESD protection on all inputs and outputs. A proprietary output stage and full power-on reset (POR) circuit allow the AP54RHC301 to be cold-spared in any redundant configuration with no static power loss on any device pad.

Rad-Hard Overview

Apogee Semiconductor creates Radiation Hardened (Rad-Hard) semiconductor devices for Rad-Hard and extreme Single Event Effects (SEE, SET, SEU, SEL) fields; from Space (QML-V, QML-S) to MEO, LaGrange, LEO, Atmospheric to Downhole applications. These devices are also compatible with all aerospace, defense, military, and naval applications having a full Mil-Temp range of -55°C to +125°C.  Apogee is a turnkey mixed-signal ASIC (MS-ASIC) capable firm with secure capabilities, and all Apogee products can be produced with ITAR and CONUS flows.

Features

  • 1.65VDC to 5.5VDC operation
  • Inputs tolerant up to 5.5VDC at any VCC
  • Provides logic-level down translation to VCC
  • Extended operating temperature range (-55°C to 125°C)
  • Proprietary cold-sparing capability with zero static power penalty
  • Built-in triple redundancy for enhanced reliability
  • Internal power-on reset (POR) circuitry ensures reliable power-up and power-down responses during hot plug and cold-sparing operations
  • Class 2 ESD protection (4000V HBM, 500V CDM)
  • TID resilience of 30krad (Si)
  • SEL resilient up to LET of 80MeV-cm2/mg

Applications

  • Space
  • Medical imaging

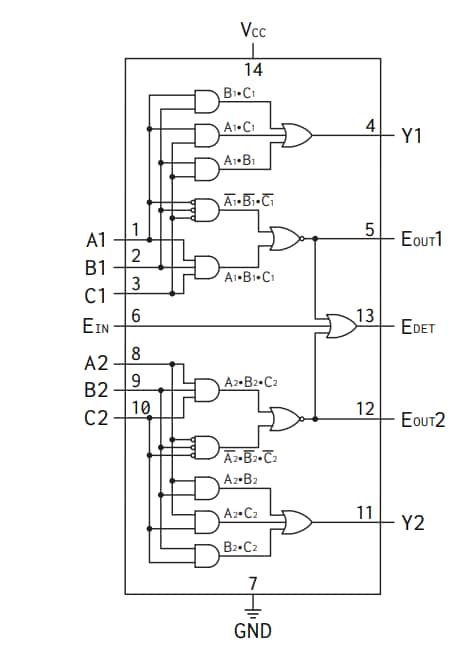

LOGIC DIAGRAM

Location Circuit - Apogee Semiconductor AP54RHC301 Rad-Hard Dual 3-Input Majority Voters

Voter application example

Block Diagram - Apogee Semiconductor AP54RHC301 Rad-Hard Dual 3-Input Majority Voters

Cold sparing example

Mechanical Drawing - Apogee Semiconductor AP54RHC301 Rad-Hard Dual 3-Input Majority Voters
View Results ( 4 ) Page
Número de referencia Hoja de datos Descripción Número de líneas de salida Corriente de salida de bajo nivel Corriente de salida de alto nivel Tiempo de retraso de propagación Tensión del suministro - Mín Tensión del suministro - Máx Número de puertas Número de líneas de entrada
AP54RHC301ELT-R AP54RHC301ELT-R Hoja de datos Puertas lógicas LEO Dual 3-input majority voter, Evaluation-Grade, SnPb TSSOP14, packed in tape and reel 2 Output 24 mA - 24 mA 17 ns 1.65 V 5.5 V 2 Gate 6 Input
AP54RHC301ALT-R AP54RHC301ALT-R Hoja de datos Puertas lógicas LEO Dual 3-input majority voter, A-Grade Flight, SnPb TSSOP14, packed in tape and reel
AP54RHC301CLT-R AP54RHC301CLT-R Hoja de datos Puertas lógicas LEO Dual 3-input majority voter, Commercial-Flight, SnPb TSSOP14, packed in tape and reel 2 Output 24 mA - 24 mA 25 ns 1.65 V 5.5 V 2 Gate 6 Input
AP54RHC301NEVMLT-R AP54RHC301NEVMLT-R Hoja de datos Puertas lógicas LEO Dual 3-input voter, Nano Evaluation Module, SnPb TSSOP14 2 Output 24 mA - 24 mA 25 ns 1.65 V 5.5 V 2 Gate 6 Input
