Analog Devices / Maxim Integrated MAX492 Dual Micropower Op Amps

Analog Devices MAX492 Dual Micropower Op Amps combine excellent DC accuracy with rail-to-rail operation at the input and output. The common-mode voltage extends from VCC to VEE, allowing these Analog Devices op amps to operate from either a single supply (+2.7V to +6V) or split supplies (±1.35V to ±3V).

The MAX492 op amp requires less than 150μA supply current and can drive a 1kΩ load. The input referred voltage noise is only 25nV/√Hz, and these op-amps can drive loads over 1nF. The precision performance of the MAX492, combined with its wide input and output dynamic range, low-voltage single-supply operation, and very low supply current, makes it an ideal choice for battery-operated equipment and other low-voltage applications.

Features

  • Low-voltage single-supply operation (+2.7V to +6V)
  • Rail-to-Rail input common-mode voltage range
  • Rail-to-Rail output swing
  • 500kHz Gain-bandwidth product
  • Unity-gain stable
  • 150µA Max quiescent current per op amp
  • No phase reversal for overdriven inputs
  • 200µV Offset voltage
  • High voltage gain (108dB)
  • High CMRR (90dB) and PSRR (110dB)
  • Drives 1kΩ load
  • Drives large capacitive loads
  • MAX495 Available in µMAX package 8-Pin SO

Applications

  • Portable equipment
  • Battery-powered instruments
  • Data acquisition
  • Signal conditioning
  • Low-voltage applications

Block Diagram

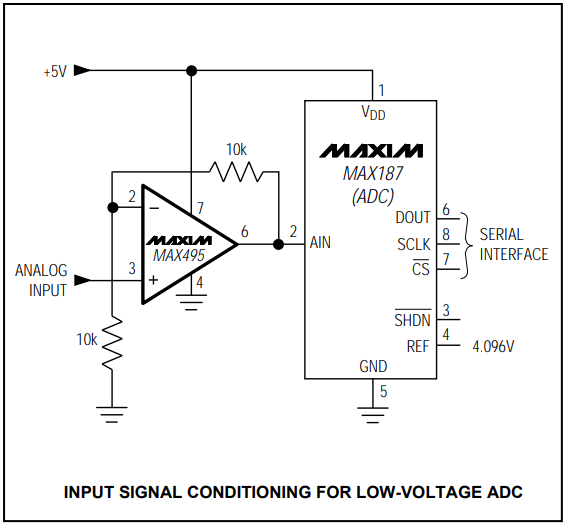

Block Diagram - Analog Devices / Maxim Integrated MAX492 Dual Micropower Op Amps
