Analog Devices Inc. EVAL-ADPD410x-ARDZ Arduino Breakout Boards
Analog Devices Inc. EVAL-ADPD410x-ARDZ Arduino Breakout Boards include the EVAL-ADPD4100-ARDZ and EVAL-ADPD4101-ARDZ designed for developing ADPD4100 and ADPD4101 applications, respectively. The ADPD4101 and ADPD4100 are highly versatile, multimodal sensor front ends. The ADPD4101 is interfaced through I2C, and the ADPD4100, interfaced through SPI, stimulates up to eight light-emitting diodes (LEDs) and measures the return signal on up to eight separate current inputs.
The EVAL-ADPD410x-ARDZ Arduino Breakout Boards work with several other evaluation platforms, including the EVAL-ADPD4100Z-PPG, optimized for photoplethysmograph applications, and the reference design CN0503, optimized for optical liquid analysis applications (colorimetry, turbidity, fluorescence). The EVAL-ADPD410X-ARDZ boards are ideal for adapting these evaluation boards to meet specific application requirements and for the "ground-up" development of new applications.
Features
- Onboard LED for quick and easy bring up
- Breakaway Prototyping Board for customized application needs
- 8-Channels of LEDs and photodiodes connections
- Standard 0.1" headers
Required Equipment
- EVAL-ADICUP3029
- EVAL-ADPD4100-ARDZ or EVAL-ADPD4101-ARDZ
- Micro USB to USB cable
- PC or laptop with a USB port
Kit Contents
- EVAL-ADPD410x-ARDZ
- Breakaway Prototyping Board
Associated Products
Analog Devices Inc. ADPD4100 & ADPD4101 Multimodal Sensor Front Ends
Feature eight input channels with multiple operation modes for various sensor measurements.
Associated DEVELOPMENT TOOLS
Analog Devices Inc. EVAL-ADPD4100Z-PPG Evaluation Board
Provides a simple means of evaluating the ADPD4100/ADPD4101 photometric front ends.
Analog Devices Inc. EVAL-CN0503-ARDZ Liquid Measurement Platform
Optical-based liquid measurement reference design based on the ADPD4101 Multimodal Sensor Front End.
Additional Resources

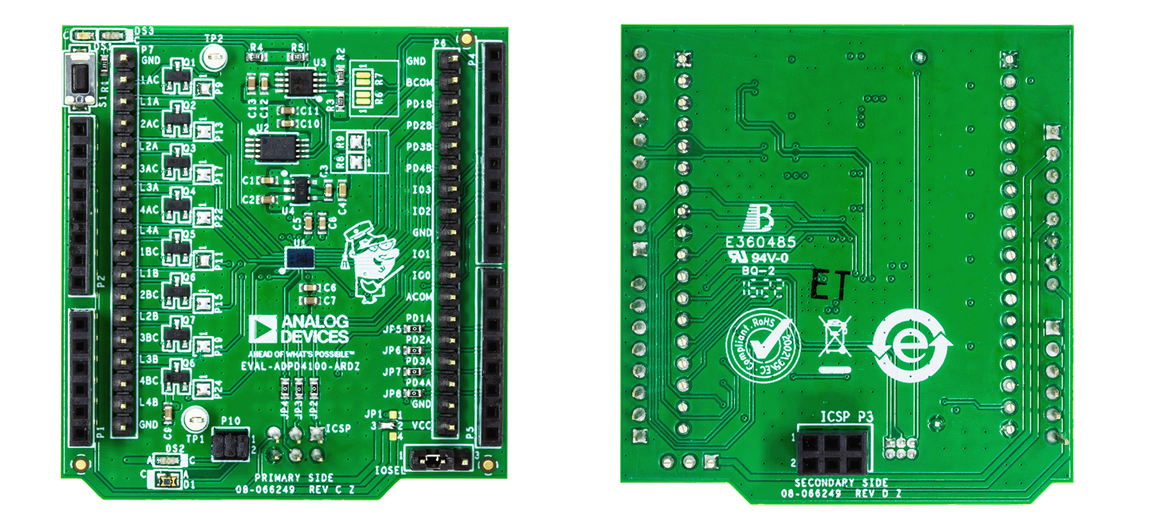

PCB Layout
