Analog Devices Inc. ADMV1530-EVALZ Evaluation Board
Analog Devices ADMV1530-EVALZ Evaluation Board implements RF circuit design techniques in an application. The ADI ADMV1530-EVALZ board demonstrates the ADMV1530 general-purpose, double-balanced mixer used as either an upconverter or a downconverter from 5GHz to 30GHz. The ADMV1530-EVALZ signal lines require 50Ω impedance with the package ground leads and exposed pad connected directly to the ground plane.
Features
- Conversion loss (downconverter) at 7dB typical at 15GHz to 30GHz
- Input IP3 (downconverter) at 27dBm typical at 15GHz to 30GHz
- Input IP2 (upconverter) at 50dBm typical at 15GHz to 30GHz
- Input 1dB compression point (downconverter) at 17dBm typical
- LO to RF isolation at 40dB typical
- LO to IF isolation at 50dB typical at 15GHz to 30GHz
- RF to IF isolation at 25dB typical at 15GHz to 30GHz
- 18-terminal, RoHS compliant, 4mm × 4mm LGA package
Applications
- Microwave and very small aperture terminal (VSAT) radios
- Test equipment
- Military electronic warfare (EW)
- Electronic countermeasure (ECM)
- Command, control, communications, and intelligence (C3I)

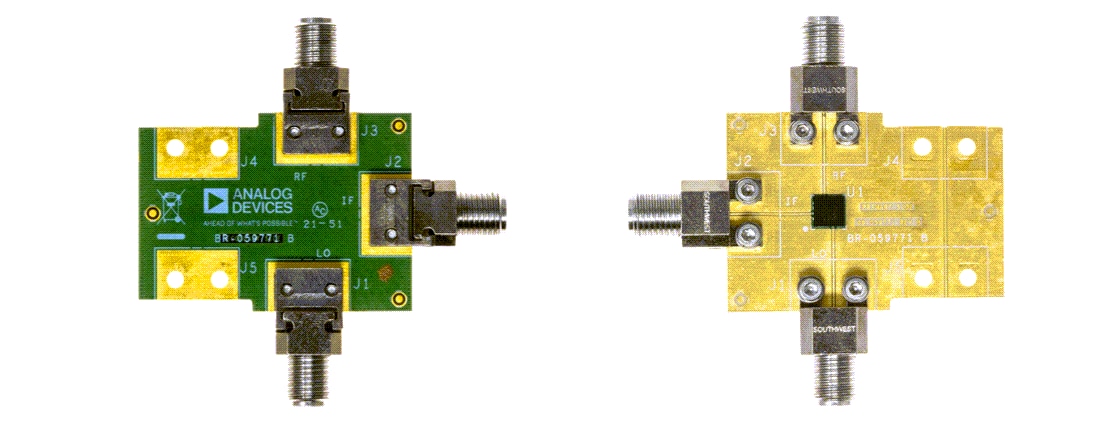

PCB Top Layer
Layout
Associated Products
Analog Devices Inc. ADMV1530 Double Balanced Mixer
The general-purpose, double-balanced mixer is offered in a leadless, RoHS-compliant SMT package.
