Analog Devices Inc. ADM256xE RS-485 Transceivers

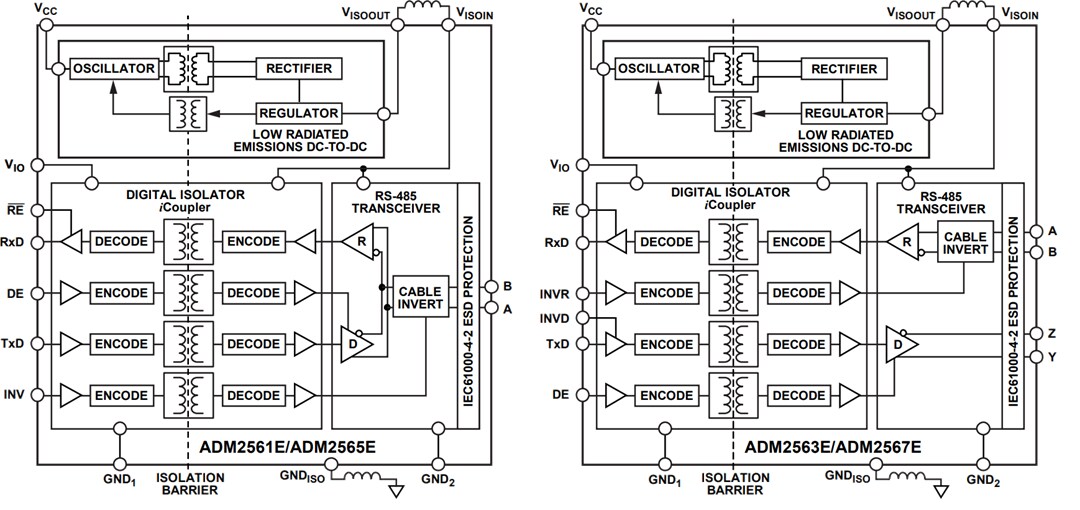

Analog Devices Inc. ADM2561E, ADM2563E, ADM2565E, and ADM2567E RS-485 Transceivers are 3kV_RMS signal and power isolated devices, with an integrated DC-DC converter optimized for low Electromagnetic Interference (EMI). The integrated DC-DC converter eliminates the need for an external isolated power supply. The isolation barrier provides immunity to system-level Electromagnetic Compatibility (EMC) standards. The ADM2561E, ADM2563E, ADM2565E, and ADM2567E feature a ±12kV contact and ±15kV air IEC61000-4-2 ESD protection on the RS-485 A, B, Y, and Z pins. The devices also feature cable invert pins, allowing the user to quickly correct reversed cable connection on the A, B, Y, and Z bus pins while maintaining full receiver fail-safe performance.

Slew rate limited versions are available, which are optimized for low speed over long cable runs, and have a maximum data rate of 500kbps. Half-duplex and full-duplex variants are also available. The full-duplex generics allow independent cable inversion of the driver and receiver for additional flexibility.

The Analog Devices ADM2561E, ADM2563E, ADM2565E, and ADM2567E RS-485 Transceivers are offered in a 28-lead, wide-body SOIC package.

Features

3kV_RMS isolated RS-485/RS-422 transceiver
Low radiated emissions, integrated, isolated DC-to-DC converter
Passes EN 55032 Class B with margin on a 2-layer PCB
Cable invert smart feature, correct reversed cable connection on A, B, Y, and Z bus pins while maintaining full receiver fail-safe features
ESD protection on RS-485 A, B, Y, and Z pins
- ≥±12kV IEC61000-4-2 contact discharge
- ≥±15kV IEC61000-4-2 air discharge
Data rates
- High speed 25Mbps (ADM2565E and ADM2567E)
- Low-speed 500kbps for EMI control (ADM2561E and ADM2563E)
Flexible power supplies
- Input V_CC supply of 3.0V to 5.0V
- Logic V_IO supply of 7.0V to 5.5V
- V_SEL pin to select V_ISO supply of 5.0V (V_CC > 5.0V) or 3.3V

PROFIBUS compliant for 5.0V V_ISO
High common-mode transient immunity of 250kV/µs
Short-circuit, open-circuit, and floating input receiver fail-safe
Supports 196 bus nodes (72kΩ receiver input impedance)
Full hot-swap support (glitch-free power-up/power-down)
Safety and regulatory approvals (pending)
- CSA Component Acceptance Notice 5A
- DIN V VDE V 0884-11
- UL 1577
- CQC11-471543-2012
- IEC 61010-1
Wide -40°C to +105°C operating temperature range

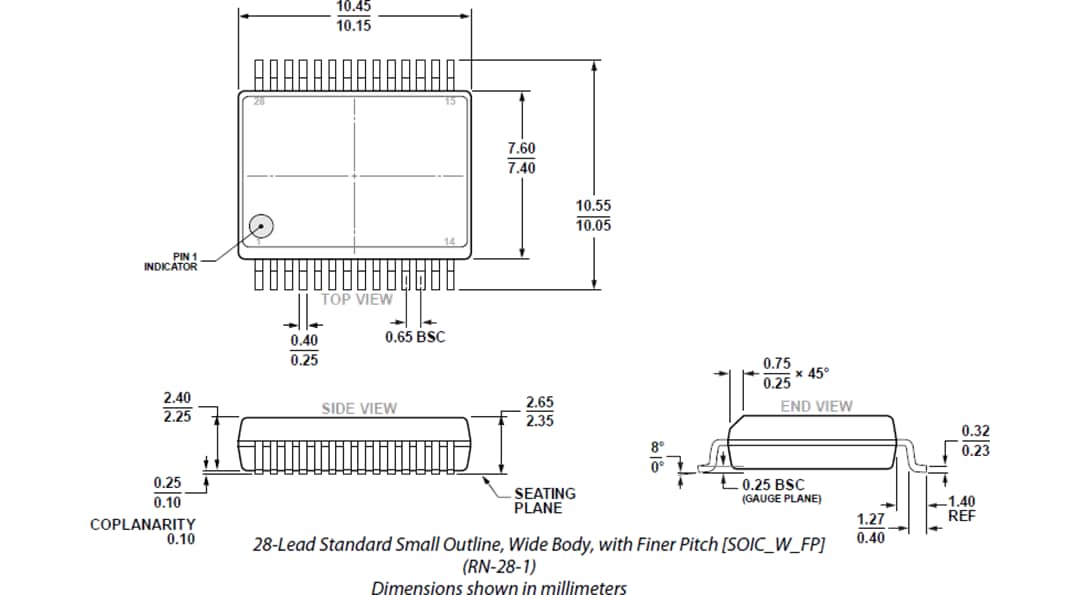

28-lead, fine pitch SOIC_W package, 10.15mm x 10.05mm
