Amphenol Commercial SFP Connectors

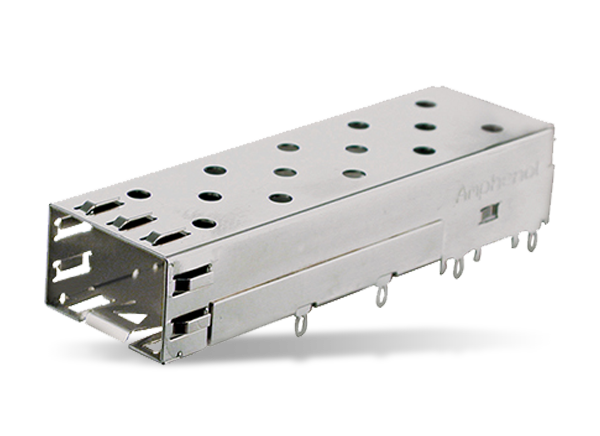

Amphenol Commercial SFP Connectors support applications for up to 6Gb/s per channel. The connectors accept multiple transceivers per INF-8074i and combine, transmit, and receive functions in a cost-effective, compact format. The assemblies are built to maximize valuable space on the PCB. The cages feature two-piece construction with enhanced transceiver mating tabs offered in a press-fit or solder-tail version. Light pipes are designed to show a "link" or "no link" status using LEDs attached to the PCB. Amphenol Commercial SFP Connectors are ideal for communications and data applications.

Features

  • Compact, hot-pluggable transceiver used for both telecommunication and data communications applications
  • Data rates
    • Up to 6Gbps per channel
    • Supports Gigabit Ethernet, Fibre Channel, Infiniband, and other communications standards
  • Full metal shield for grounding and advanced EMI reduction
  • Hot-swappable
  • Riding heat sink technology for thermal management
  • Two components - lower cage soldered to host board, top cage assembled to lower cage after soldering
  • Ganged designs maximize the PCB area
  • Ease of removal of the module from the port

Specifications

  • 30VDC operating voltage per contact
  • 0.5A operating current per contact
  • 100Ω ±10Ω differential impedance
  • -55°C to +85°C operating temperature range
  • 250 mating cycles durability
  • 50N max. mating force
  • 100g contact normal force
  • 1.45mm min. PCB thickness solder-post and press-fit (cage)
  • 3.00mm min. PCB thickness belly to belly (cage)
  • Insertion force to PCB (cage)
    • 500N for 1 port
    • 1000N for 2 port
    • 2100N for 4 ports
    • 3000N for 6 ports

Applications

  • Communications
    • Switches
    • Routers
    • Networked storage systems
    • Data center networking
  • Data
    • Servers
    • External storage systems
    • High-performance computing (HPC)
