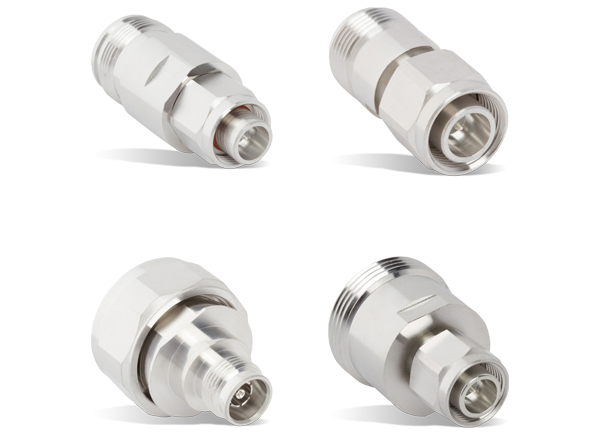

Amphenol RF 2.2-5 Compact, Low PIM Interface RF Adapters and Cable-Mount Connectors offer a 53% smaller footprint than the 4.3/10 connector series. These connectors are lightweight and can accommodate thick, low-loss cables up to a half-inch. The robust design is ideal for both indoor and outdoor use. The connectors have the ability to blind mate and are rated IP68 when mated, allowing for prolonged exposure to the elements without compromising performance. The 2.2-5 series is designed to meet the needs of applications that require low PIM in order to avoid interference in network quality during high-speed data transmission. Amphenol RF 2.2-5 adapters and connectors are ideal for wireless applications such as small cells, mobile networks, distributed antenna systems (DAS), low power base stations, and in-building architecture, and are critical to 5G communication technology.
Low PIM performance
Lightweight, compact design
Optimized for 1/4", 3/8", 1/2" corrugated cables
Ideal for outdoor applications
Distributed antenna systems (DAS)
Low power base stations
Test and measurement
DC to 20GHz frequency range
1500VRMS dielectric withstanding voltage
250W (2GHz) at 40°C power handling
Side 1 gender: Plug (male)
Side 2 gender: Jack (female)
