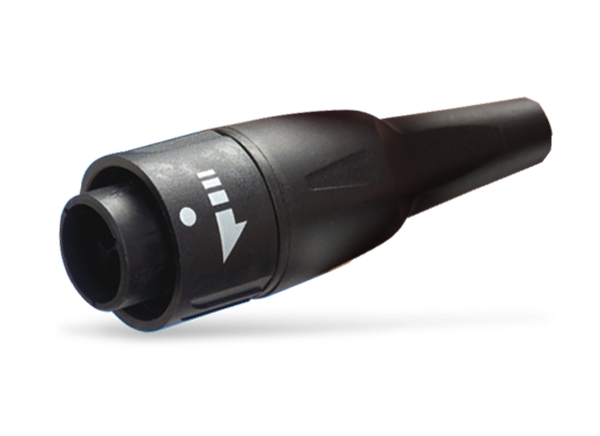

Amphenol Alden PL-900SM-N Auto-Coupling Pulse-Lok® Connectors

Amphenol Alden PL-900SM-N Pulse-Lok® Connectors are available in several power circuit configurations for industrial and medical electronics applications. These connectors feature Pulse-Lok auto-latch and quick-release mechanisms to confirm continuity. The PL-900SM-N connectors can withstand a minimum of 5000 mating cycles and offer up to 14 contact positions. These connectors feature nylon connector housings and thermoplastic rubber flex reliefs. The Amphenol Alden PL-900SM-N Pulse-Lok Connectors are water-proof and operate within a temperature range of -20°C to +105°C.


  • Pulse-Lok auto-latch/quick-release mechanism confirms continuity
  • Concealed contacts meet IEC and UL safety specifications
  • Available as a rugged overmolded cable assembly
  • Polarized housing eliminates mismating
  • 14 proprietary color combinations for coding
  • Waterproof (IP67 rated)
  • Sterilizable
  • Chemical resistant housing
  • Up to 5,000 mating cycles (with standard contacts)
  • Factory terminated and overmolded cable assemblies for enhanced flex and strain relief


  • Electrical
    • 3 to 14 poles
    • ø0.7mm to ø2.4mm contact pin size
    • 22AWG to 12AWG maximum wire gauge range
    • 600VAC/DC maximum operating voltage
    • 5.0A to 30.0 maximum operating current
    • <10mΩ contact resistance
    • 5,000 cycle minimum mating life
    • High cuurrent ratings per UL/ANSI/EIA
    • 2200VRMS dielectric withstand voltage (contact to contact and contact to outer housing)
    • Insulation resistance per ANSI/EIA-364-14
  • Materials
    • Nylon connector housing
    • Thermoplastic rubber flex reliefs
    • Brass/BeCu contacts/sockets
    • Gold plate per MIL-G-45204C
  • Mechanical
    • 5K maximum mating cycles
    • Retention force
      • 50lbs. minimum for mated connectors
      • 50lbs. typical for cable-to-connector
      • #12 to #22 contact barrel wire size
      • Probe at 7lbs. per IEC60601-1 contact isolation
  • Environmental
    • -20°C to +105°C operating temperature
    • IP67 (IEC) moisture resistance
    • UL 94V-0 flammability rating (PL900SM-V only)
    • Gamma, EtO, and autoclave sterilizable
    • Common or cleaning solvent chemical resistance
