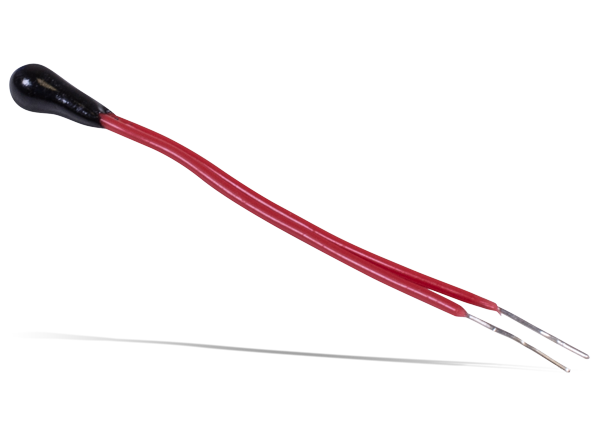

Amphenol Advanced Sensors NTC Type MS Thermometrics Epoxy-Coated Thermistors are point-matched disc thermistors with 0.01" (0.254mm) nickel PTFE-insulated lead wires. The sensors feature high sensitivity to changes in temperature, standard resistance tolerances down to ±2%, and excellent mechanical strength. Amphenol Advanced Sensors NTC Type MS Thermometrics Epoxy-Coated Thermistors are available in a wide range of material systems.
Cost-effective, solid-state temperature sensor
High sensitivity to changes in temperature
Suitable for temperature measurement, control, and compensation
Standard resistance tolerances down to ±2%
Excellent mechanical strength
Suitable for PCB and probe mountings
Available in a wide range of material systems
Overall lengths from 18mm to 78mm
±1°C temperature accuracy at +25°C)
1.4 mW/°C dissipation constant
15s time constant
-50°C to +150°C operating temperature range
Amphenol Advanced Sensors NTC Thermistors
Epoxy-coated thermistors, available in an extensive range of resistances and beta values.
