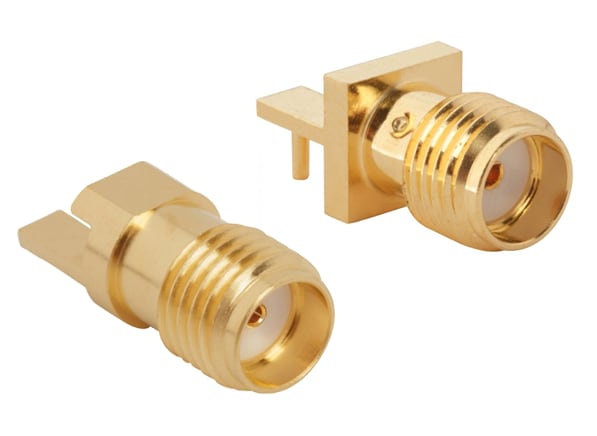

Amphenol RF High Frequency SMA End Launch Connectors

Amphenol RF High-Frequency SMA End Launch Connectors feature an optimized end launch design with through-hole legs or traditional slide-on mounting legs, making them an ideal PCB connector solution for high-frequency applications. These connectors offer excellent voltage standing wave ratio (VSWR) performance up to 26.5GHz and are available for multiple different PCB thicknesses. Other features include 50Ω impedance, 170V_RMS voltage rating, 1000MΩ insulation resistance, and -65°C to +165°C temperature range. Amphenol RF High-Frequency SMA End Launch Connectors are ideal for use in amplifiers, wireless infrastructures, remote sensing and metering, GPS antennas, radar systems, high-speed routers and switches, automated test equipment, and much more.
