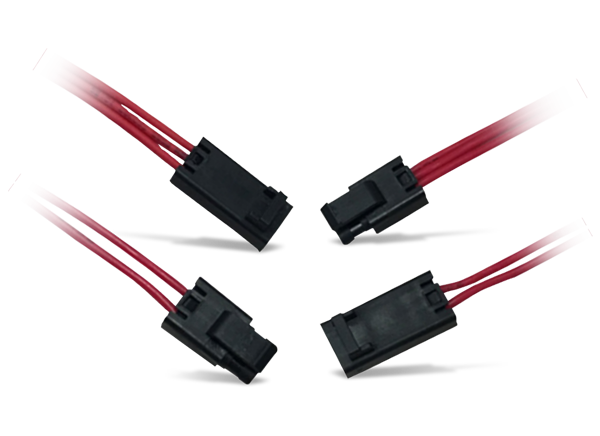

Amphenol Commercial FLH Mini-Sealed 2.5mm Pitch Connectors

Amphenol Commercial FLH Mini-Sealed 2.5mm Pitch Connectors feature a compact design and easy installation. These connectors offer wire-to-wire IP67 sealing in mated conditions as well as high-current design options up to 8A with 18AWG wire gauge. The FLH series includes a connector system with header and receptacle counterparts, enabling design flexibility while meeting power expectations. Amphenol Commercial FLH Mini-Sealed 2.5mm Pitch Connectors are waterproof for harsh environments. Typical applications include industrial, lighting, HVAC, and smart homes.

Features

Wire-to-wire IP67 water-resistant sealing in mated conditions
Waterproof and reliable connections in harsh environments
Compact design
Easy installation
High-current design options
- 8A-18AWG
- 5A-20AWG
- 3A-22AWG
Provides connector system with header and receptacle counterparts

Space-saving PCB modules
Ease of design and assembly
Meets environmental, health, and safety requirements
Allows design flexibility and meets various power expectations
RoHS compliant as per EU directive 2011/65/EU and amendments
High-temperature, thermoplastic, UL 94V-0 rated, and black housing
Silicon rubber sealing
Box or tape-and-reel packaging

Specifications

Mechanical
- 25 cycles at -40°C to +105°C temperature range
- Per EIA364-27, condition H (11ms 30G) physical shock
- Per EIC512-6/EIA364-11A humidity
- Per EIA364-28, condition 5A vibration
- Per EIA364-26 and 240 hours of salt spray
- 50 mating cycles
- -40°C to +105°C temperature range

Electrical
- 400V_AC voltage (maximum)
- Δ20mΩ contact resistance (maximum)
- 500MΩ insulation resistance (minimum)
- 1800V_AC at sea level dielectric withstanding voltage
