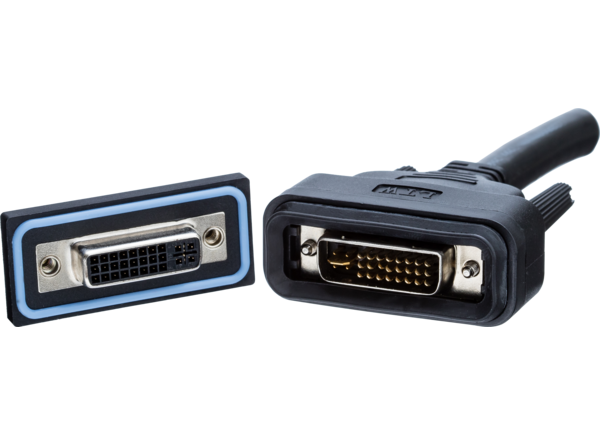

Amphenol LTW DVI Connectors

Amphenol LTW DVI Connectors feature a 1.5A current rating, ≤20mΩ contact resistance, and insulation resistance of ≥1000MΩ at 500VDC. These connectors are constructed with gold-plated copper alloy contacts and a steel, nickel-plated shell. The series is available in cable lengths ranging from 1m to 5m. Amphenol LTW DVI Connectors feature an IP67 or IP68 waterproof rating and a durability of 100 cycles. The connectors operate in a -20°C to +80°C temperature range.

Features

  • Gold-plated copper alloy contacts
  • Steel, nickel-plated shell
  • 1m to 5m cable lengths
  • Waterproof rating
    • Receptacle: IP68
    • Overmolded with cable: IP67
  • Product lineup
    • DVI-D single link (DDS): Digital
    • DVI-D dual link (DDD): Digital
    • DVI-I single link (DIS): Digital and analog
    • DVI-I dual link (DID): Digital and analog

Specifications

  • 1.5A rated current
  • ≤20mΩ contact resistance
  • ≥1000MΩ insulation resistance at 500VDC
  • ≥500VAC breakdown voltage (1 minute)
  • Durability: 100 cycles
  • -20°C to +80°C operating temperature range

Physical Dimensions

Amphenol LTW DVI Connectors
