Amphenol Aerospace VIPER® High-Speed, High-Density Connectors

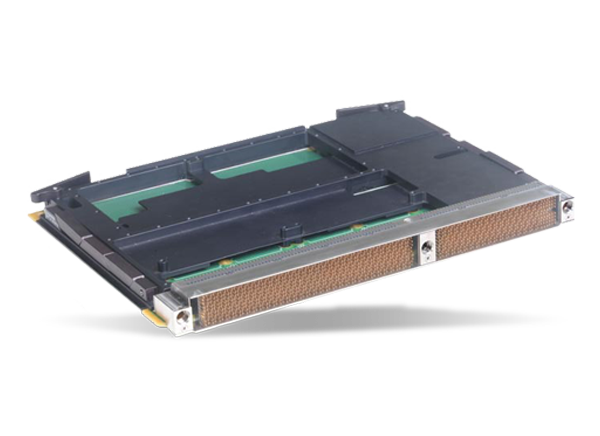

Amphenol Aerospace VIPER® High-Speed, High-Density Connectors are designed to meet the demanding requirements of current and next-generation rugged military, aerospace, and industrial applications. These connectors utilize a shielded press-fit backplane and daughtercard interconnect platform, providing 63 differential signals per linear inch. The VIPER connector platform offers the ability to scale from 80Mbps to over 10Gbps while retaining the same VITA 46 backplane slot pitch at 20.3mm to 25.4mm. The backplane signal contacts incorporate a highly reliable four-point-of-contact beam design. The daughtercard and backplane contacts are stamped using Olin's high-quality C7025 copper alloy and are plated using nickel underplate with 50µin of gold on all mating surfaces.
Features
- Flexible modular design is fully footprint-compatible with VPX standards (VITA 46/48)
- Allows leverage of existing module card designs
- Flexible modular design is ideal for standard 3U and 6U applications, as well as unique custom configurations incorporating RF and fiber optic MT solutions
- ESD protection supports 2-level maintenance designs

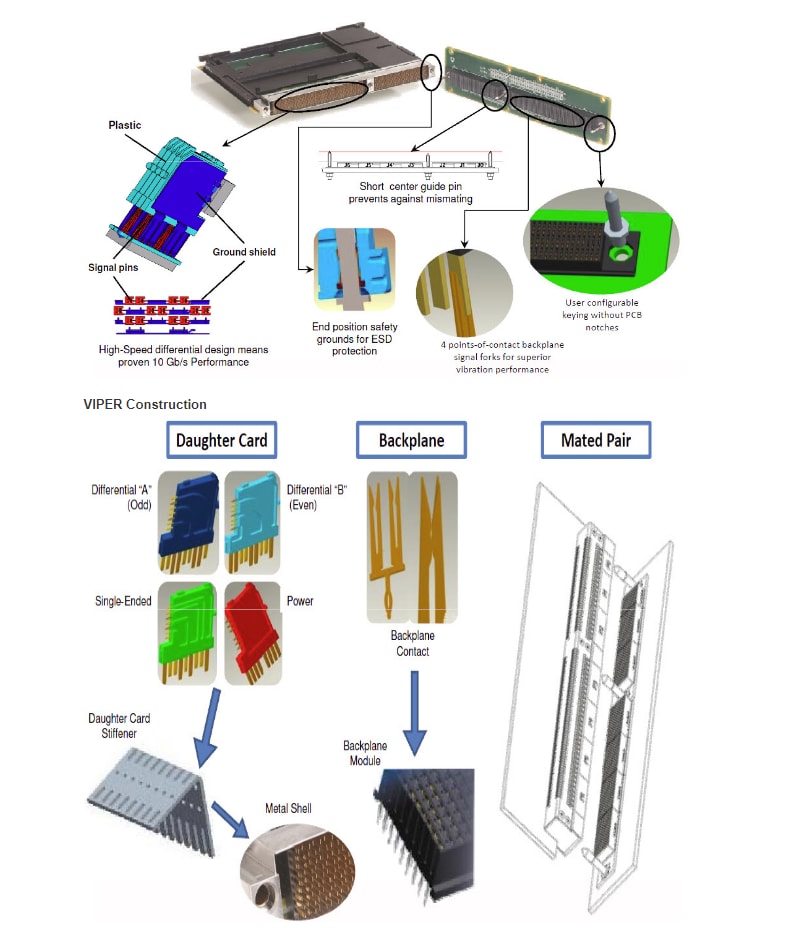

- User-configurable keying without PCB notches; 512 user-configurable keying options available.
- Separable interface offering 70 single-ended signals/25.4mm and 63 differential signals/25.4mm
- High density and high speed
- Designed for 10+Gbps data rate performance; signal integrity to 10Gbps
- 63 differential signals per linear inch
- 100Ω impedance for differential pair configuration
- Ruggedized for harsh environments
- Capable of 29 G'rms vibrations without fretting corrosion or wear-through
- Shorter center guide pin prevents mismatching
- ±0.52mm nom. translation in fully mated condition
Applications
- Military and commercial aerospace
- Radars
- Control systems
- Rugged, mission-critical applications
- GPS systems
- Fuel management systems
