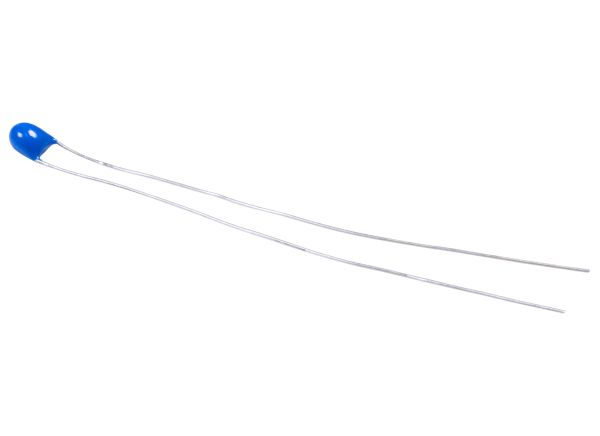

Ametherm NTC Disc Thermistors

Ametherm NTC Disc Thermistors are thermally sensitive semiconductor resistors which decrease in resistance as absolute temperature increases. Resistance values range from 1.0Ω to 500KΩ. The series is suited to a wide range of resistance values and temperature coefficients. Typical applications include temperature compensation, temperature measurement, fan motor control, and temperature sensors.


  • Wide ohmic value range
  • Accurate and stable
  • Fast thermal response time
  • Tight tolerances
  • High sensitivity
  • 28AWG to 24AWG leads
  • 50Ω to 100,000Ω ±10% resistance at +25°C
  • RoHS compliant


  • Temperature compensation
  • Temperature measurement & control
  • Fan motor control
  • Fluid level & temperature sensors
