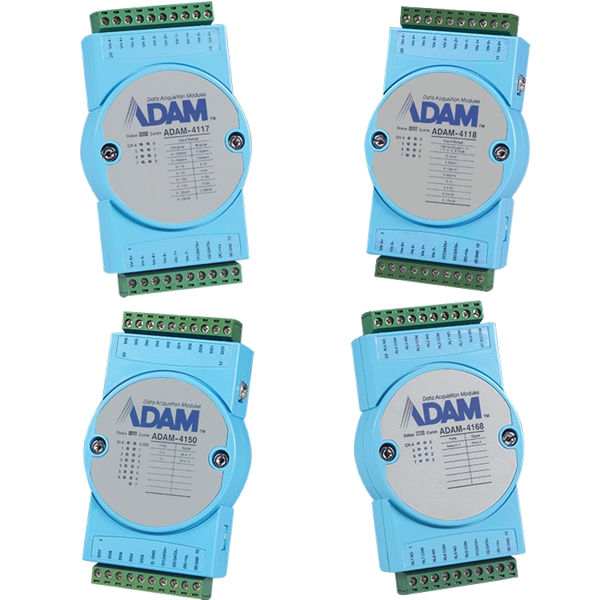

Advantech ADAM-4100 Robust Remote I/O Modules

Advantech ADAM-4100 I/O modules are compact and versatile sensor-to-computer interface units. They are designed for reliable operation in harsh environments and can operate normally in wide temperatures from -40°C to +85°C, with wide power input and resistance against noise-interference.

Features

Communication
- Speed: 1.2Kbps to 115Kbps
- Maximum communication distance: 4000-ft. (1.2km) for RS-485
- Communication error checking with checksum
- Asynchronous data format:
  - Advantech protocol: 1 start bit, 8 data bits, 1 stop bit, no parity
  - Modbus protocol: 1 start bit, 8 data bits, 1 or 2 stop bits, parity check (none, odd, even)
- Up to 256 multi-drop modules per serial port
- Online module insertion and removal
- Transient suppression on RS-485 communication lines
- Micro USB interface (B version)
- Reset default setting
- Power and communication LED indicators
Channels
- ADAM-4117: 8 differential and independent configuration channels
- ADAM-4118: 8 differential and independent thermocouple configuration channels
- ADAM-4150: 7 input channels and 8 output channels
- ADAM-4168: 8 Form A output channels

Environmental
- Operating temperature: -40°C to 85°C (-40°F to 185°F)
- EMI Meets FCC Class A and CE
- Humidity: 5% to 95%, non-condensing
Power Requirements
- Unregulated +10V to +48V DC
Mechanical
- PC with captive mounting hardware
- Plug-in screw terminal block accepts wire sizes of #14AWG to 22AWG with a stripped length of 5mm
