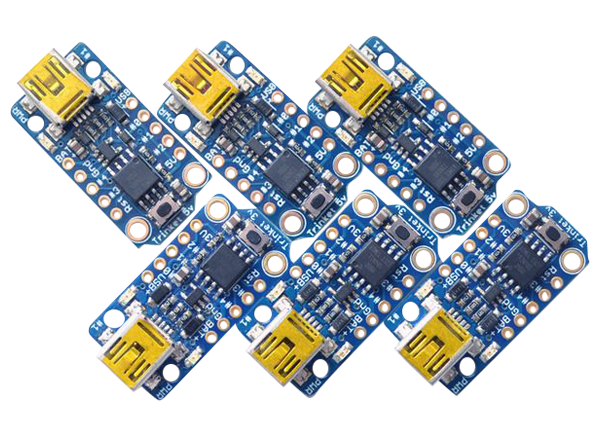

Adafruit Trinkets
Adafruit Trinkets are tiny microcontroller boards that are Arduino-IDE programmable and built around the Atmel ATtiny85, a little chip with a lot of power. The Trinket is small enough to fit into any project and low cost to use without hesitation. The Attiny85 has 8K of flash, and 5 I/O pins, including analog inputs and PWM 'analog' outputs. A USB bootloader allows the Trinket to plug into any computer for reprogramming over a USB port, just like an Arduino.
Two versions of the Trinket are available, a 3V and 5V. Use the 3V for sensors and devices that need 3V logic, 5V for sensors, and devices that need 5V logic. The Trinkets can be powered with a LiPo battery and the 3V version should only run at 8MHz. The 5V version can run at 8MHz or at 16MHz by setting the software-set clock frequency. Even though the Trinket can be programmed using the Arduino IDE, it's not fully 100% Arduino-compatible.
Features
- Atmel ATtiny85 on-board, 8K of flash, 512 bytes of SRAM, 512 bytes of EEPROM
- Internal oscillator runs at 8MHz but can be doubled in software for 16MHz
- USB bootloader with a nice LED indicator to program with AVRdude (with a simple configuration modification) and/or the Arduino IDE (with a few simple configuration modifications)
- Micro-USB jack for power and/or USB uploading, use any USB cable to reprogram
- ~5.25K bytes available for use (2.75K taken for the bootloader)
- Available in both 3V and 5V
- On-board 3.3V or 5.0V power regulator with 150mA output capability and ultra-low dropout
- Up to 16V input, reverse-polarity protection, thermal and current-limit protection
- Power with either USB or external output
- On-board green power LED and red pin #1 LED
- Reset button for entering the bootloader or restarting the program
- 5 GPIO - 2 shared with the USB interface
- The 3 independent IO pins have 1 analog input and 2 PWM output as well, the 2 shared IO pins have 2 more analog inputs and one more PWM output
- Hardware I2C / SPI capability for breakout & sensor interfacing
- Works with many basic Arduino libraries including Adafruit Neopixel
On-The-Board
Videos
Learn About Adafruit Pro Trinkets
Adafruit Pro Trinkets
Available in 3V 12MHz and 5V 16MHz versions with an ATmega328, more pins, FLASH, and RAM.
