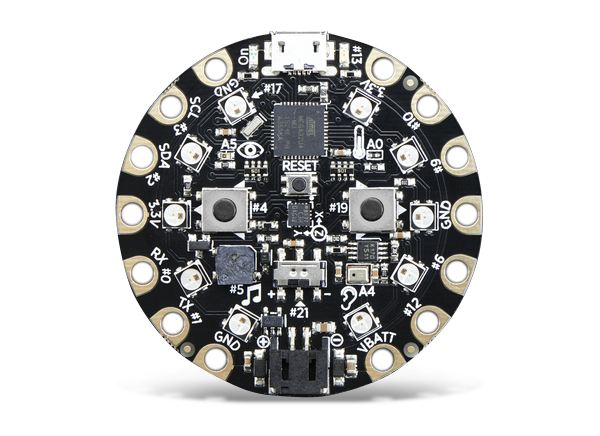

Adafruit Circuit Playground

Adafruit Circuit Playground Classic is an all-in-one board with built-in sensors and LEDs for practicing programming on real hardware. The Circuit Playground Classic is round and has alligator clip-pads so no soldering or sewing is required. The Circuit Playground Classic features an ATmega32u4 processor like the Flora. The board is powered by USB, a "AAA" battery pack, or a Li-poly battery.

​Circuit Playground Classic has built-in USB support for plug and program support with a Micro-B USB cable. The board features the new 1.6.4+ Arduino IDE, and adding support takes only a few seconds. The Circuit Playground can act like a mouse or keyboard and attach directly to computers with USB HID support.


  • ATmega32u4 Processor, running at 3.3V and 8MHz
  • MicroUSB port for programming and debugging with Arduino IDE
  • USB port can act like serial port, keyboard, mouse, joystick, or MIDI



Adafruit Circuit Playground

Kit Contents

  • 10 x Mini NeoPixel LEDs, each one can display any rainbow color
  • 1 x Motion Sensor (LIS3DH 3-Axis XYZ Accelerometer), with Tap and Free-Fall Detection)
  • 1 x Temperature Sensor (MMBT2222)
  • 1 x Light Sensor (ALSPT1931), can also act as a Color or Pulse Sensor)
  • 1 x Sound sensor (MEMS Microphone)
  • Infrared Transmitter and Receiver (DSOP38338), can transmit and receive remote control codes, send messages between Circuit Playground Expresses, or act as a Proximity Sensor.
  • 1 x Mini speaker with class D amplifier (7.5mm magnetic speaker/buzzer)
  • 2 x Push buttons, left and right
  • 1 x Slide switch
  • 8 x Alligator-clip friendly input/output pins (Includes I2C, UART, 8 pins that can do analog inputs/multiple PWM output
  • 7 pads can act as Capacitive Touch inputs, the remaining pad is a true analog output
  • Green "ON" LED
  • Red "#13" LED for basic blinking
  • Reset button
