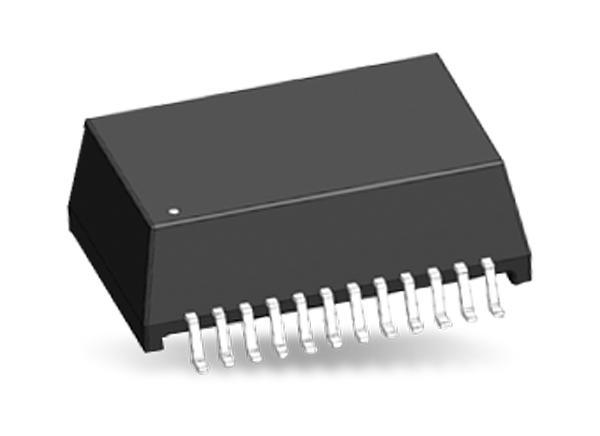

Abracon ALAN210001 POE+ Single Port LAN Transformer Module

Abracon ALAN210001 POE+ 10/100/1000 BASE-T Single Port SMD LAN Transformer Modules provide high-performance magnetics for EMI suppression and common mode noise rejection. These audio/signal transformers feature current capability up to 600mA, support speeds up to 1Gbps, and operate in a temperature range of -40°C to +125°C. Abracon ALAN210001 POE+ Single Port LAN Transformer Module applications include industrial computers and robotics, networking and communications, fast and gigabit ethernet, broadcast video, and more.


  • Meets IEEE 802.3at standards
  • Supports speeds up to 1Gbps
  • Up to 30W Power Over Ethernet (POE)
  • Up to 600mA Current capability
  • -40°C to +125°C operating temperature range
  • Compatible with major ICs for Ethernet applications
  • High-performance magnetics for EMI suppression and common mode noise rejection
  • 1CT:1CT TX and RX transformers
  • RoHS/RoHS II compliant


  • 350µH minimum inductance
  • 0.5µH maximum leakage inductance
  • 35pF maximum interwinding capacitance
  • 1500VRMS Hi-Pot
  • 2.1g weight
  • 18.3mm x 12.4mm x 6.4mm


  • Fast and gigabit ethernet
  • Hubs, servers, switches, routers, and access points
  • IP cameras, surveillance, and phone
  • Industrial computers and robotics
  • Networking and communications
  • Broadcast video
  • Set-top box
Publicado: 2019-10-28 | Actualizado: 2023-03-16
