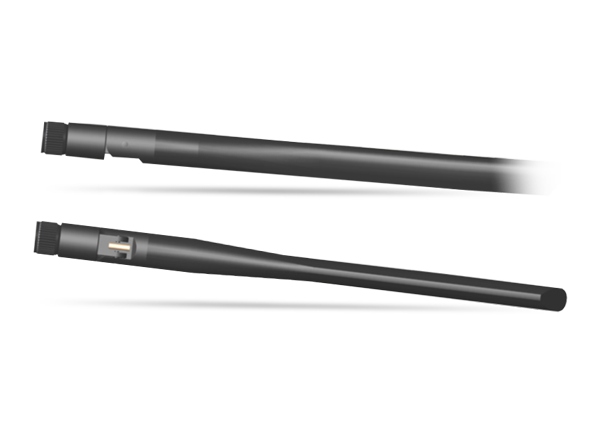

Abracon AEACAC198013-S5GNR 5G/4G External Whip Antenna
Abracon AEACAC198013-S5GNR 5G/4G External Whip Antenna covers 5G NR, CBRS, and private LTE bands and supports cellular 4G/LTE/3G bands. This SMA connector-mount device offers linear polarization, a gain of 3 dBi, and operating frequency ranges of 698MHz-960MHz / 1710MHz-2690MHz / 3300MHz-3800MHz. Abracon AEACAC198013-S5GNR antenna is well suited for 5G, 4G/LTE, Internet of Things (IoT), LTE radios, gateways and routers, set-top boxes, security, vending machines, smart metering, and smart home applications.
Features
- Includes 5G NR, CBRS, private LTE bands
- Supports cellular 4G/LTE/3G bands
- Linear polarization
- SMA connector mount
- Pb free
- RoHS and RoHS II compliant
Specifications
- 698MHz-960MHz / 1710MHz-2690MHz / 3300MHz-3800MHz operating frequency ranges
- Gain of 3 dBi
- -40°C to +85°C operating temperature range
Applications
- 5G
- 4G/LTE
- IoT
- LTE radios
- Gateways and routers
- Set-top boxes
- Security
- Vending machines
- Smart metering
- Smart home

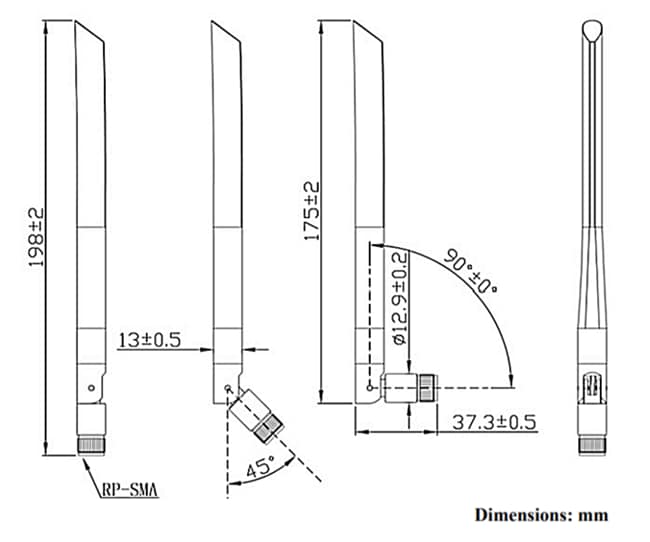

Dimensions
Publicado: 2019-12-03
| Actualizado: 2023-03-17
