ST4-30-1.50-L-D-P-TR

Name: Samtec ST4-30-1.50-L-D-P-TR
Brand: Samtec
SKU: 200-ST4301.50LDPTR
Price: 3.51 EUR
Availability: InStock

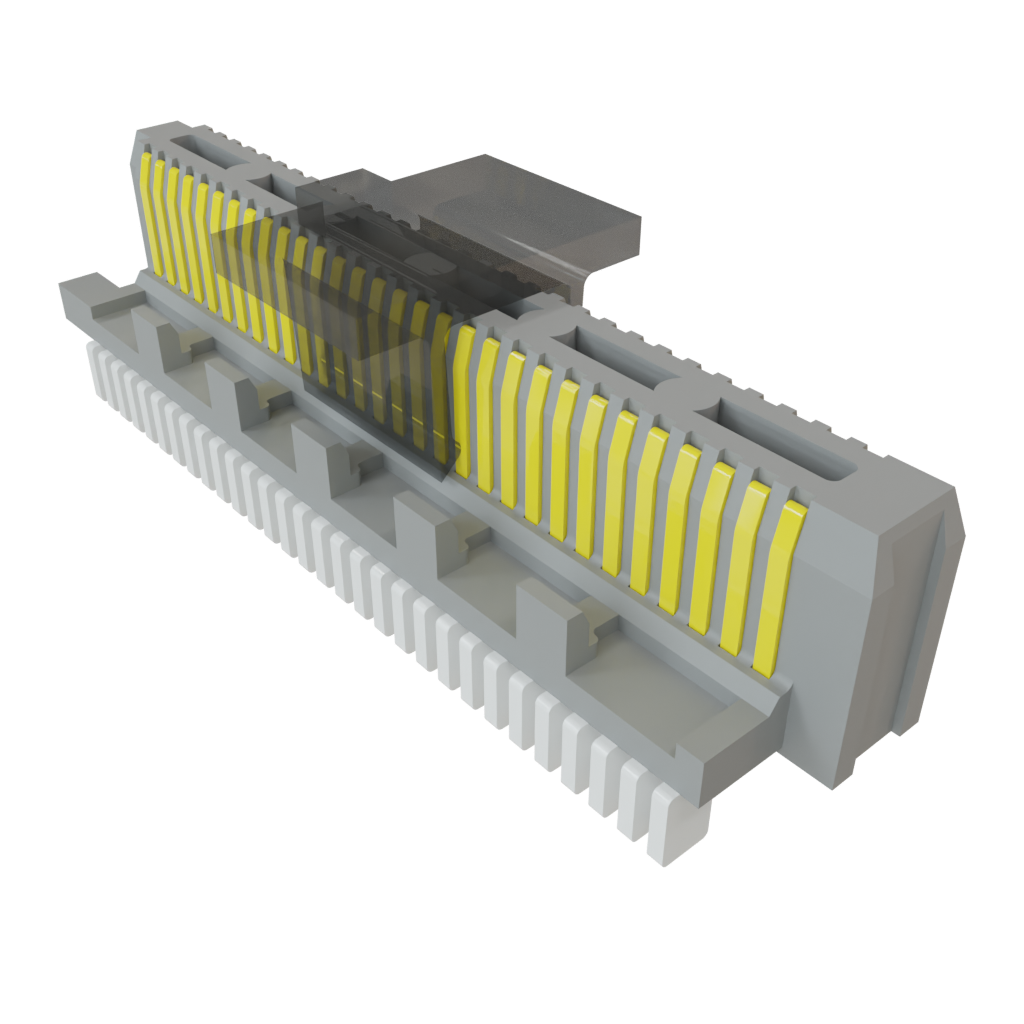

Las imágenes son sólo para referencia
Ver especificaciones del producto

Mouser REF:

200-ST4301.50LDPTR

Fabr. N.º:

ST4-30-1.50-L-D-P-TR

Fabr.:

Samtec

Descripción:

Conectores placa a placa y mezzanine 0.40 mm Micro Blade & Beam Ultra Fine Pitch Header

Modelo ECAD:

Descargue el Cargador de bibliotecas gratuito para convertir este archivo para su herramienta ECAD. Obtenga más información del modelo ECAD.

Más información

Más información sobre Samtec ST4-30-1.50-L-D-P-TR

En existencias: 662

Existencias:: 662 Puede enviarse inmediatamente

Se ha producido un error inesperado. Intente de nuevo más tarde.
Plazo de producción de fábrica:: 3 Semanas Tiempo estimado para la producción en fábrica para cantidades superiores a las mostradas.

Introducir cantidad:

Mínimo: 1 Múltiples: 1

Precio unitario:

-,-- €

Precio total:

-,-- €

Tarifa estimada:

Precio (EUR)

Cant.	Precio unitario	Precio total
	3,51 €	3,51 €
	3,22 €	161,00 €
	3,02 €	302,00 €
	2,72 €	680,00 €
	2,65 €	1.325,00 €
Bobina completo(s) (realice el pedido en múltiplos de 1025)
	2,34 €	2.398,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Atributo del producto	Valor del atributo	Seleccionar atributo
Fabricante:	Samtec
Categoría de producto:	Conectores placa a placa y mezzanine
RoHS:
Producto:	Headers
Número de posiciones:	60 Position
Paso:	0.4 mm (0.016 in)
Número de filas:	2 Row
Estilo de terminación:	Solder
Ángulo de montaje:	Vertical
Altura de pila:	4.5 mm, 5 mm
Valor de corriente:	1.6 A
Voltaje máximo:	155 VAC
Tasa de datos máxima:	28 Gbps
Temperatura operativa mínima:	- 55 C
Temperatura operativa máxima:	+ 125 C
Recubrimiento del contacto:	Gold
Material del contacto:	Phosphor Bronze
Material de la carcasa:	Liquid Crystal Polymer (LCP)
Serie:	ST4
Empaquetado:	Reel
Empaquetado:	Cut Tape
Aplicación:	Power, Signal
Marca:	Samtec
Frecuencia de datos:	28 Gbps
Inflamabilidad máxima:	UL 94 V-0
Estilo de montaje:	SMD/SMT
Tipo de producto:	Board to Board & Mezzanine Connectors
Cantidad del paquete de fábrica:	1025
Subcategoría:	Board to Board & Mezzanine Connectors
Nombre comercial:	Razor Beam LP
Peso unitario:	73,610 mg

Productos encontrados:

Para mostrar productos similares, seleccione al menos una casilla

Seleccione al menos una casilla para mostrar productos similares dentro de esta categoría.

Atributos seleccionados: 0

Filtrar documento:

Images

Imagen

Models

ST4-30-1.50-L-D-P-TR Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Ultra Micro Interconnects

Samtec Ultra Micro Interconnects offer a stack height as low as 2.31mm and pitches of 0.4mm, 0.5mm, 0.635mm, and 0.8mm. One to four rows are available, and termination styles include solder, solder balls, and solder pin. Samtec Ultra Micro Interconnects are available in several mounting angles, including horizontal, right, straight, and vertical. The product lineup features connectors, headers, receptacles, sockets, and hermaphroditic connectors.

SS4/ST4 0.40mm Ultra-Fine-Pitch Connectors

Samtec SS4 / ST4 0.40mm Ultra-Fine-Pitch Connectors deliver up to 28Gbps performance and are available with up to 100 I/Os and stack heights ranging from 4mm to 6mm. These slim-footprint connectors are designed for board-to-board connections where space is at a premium. The connectors are manufactured on an ultra-fine 0.40mm pitch and come in a vertical configuration. These Razor Beam™ LP family connectors are engineered to save space on the X, Y, and Z axes. The SS4 sockets mate with the ST4 headers and vice-versa. Samtec SS4 / ST4 0.40mm Ultra-Fine-Pitch Connectors operate in a -55°C to +125°C temperature range and are ideal for applications such as 5G networking, test connectivity, artificial intelligence (AI) and machine learning, broadcast videos, medical, and more.

Ultra-Micro Connector Solutions

Samtec Ultra-Micro Connector Solutions feature Razor Beam™ LP ultra-micro blade and beam fine-pitch connectors available on 0.40mm and 0.50mm pitches with stack heights as low as 2mm. These connectors are ideal for small and fast applications, offering speeds up to 56Gbps PAM4 (SS5/ST5). The connectors feature a slim body design and are engineered to save space on the X, Y, and Z axes. Samtec Ultra-Micro Connector Solutions products can be utilized at both the component level and system level to ensure full system optimization. Applications include 5G networking, military/aerospace, medical, artificial intelligence (AI), machine learning, instrumentation, and more.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

SS4/ST4 Micro Blade & Beam Headers & Sockets

Samtec SS4 / ST4 Micro Blade and Beam Headers and Sockets feature an ultra-fine 0.40mm pitch and a slim body design for increased board space savings. Both SS4 and ST4 connectors are intermateable with each other as well as compatible with mPOWER™ products for power / signal flexibility. Other features include 28Gbps performance, 1.6A current rating per pin (2 pins powered), 10 to 50 positions per row, and up to 100 I/Os. Samtec SS4 / ST4 Micro Blade and Beam Headers and Sockets have stack heights from 4mm to 6mm and operate in a -55°C to +125°C temperature range.
