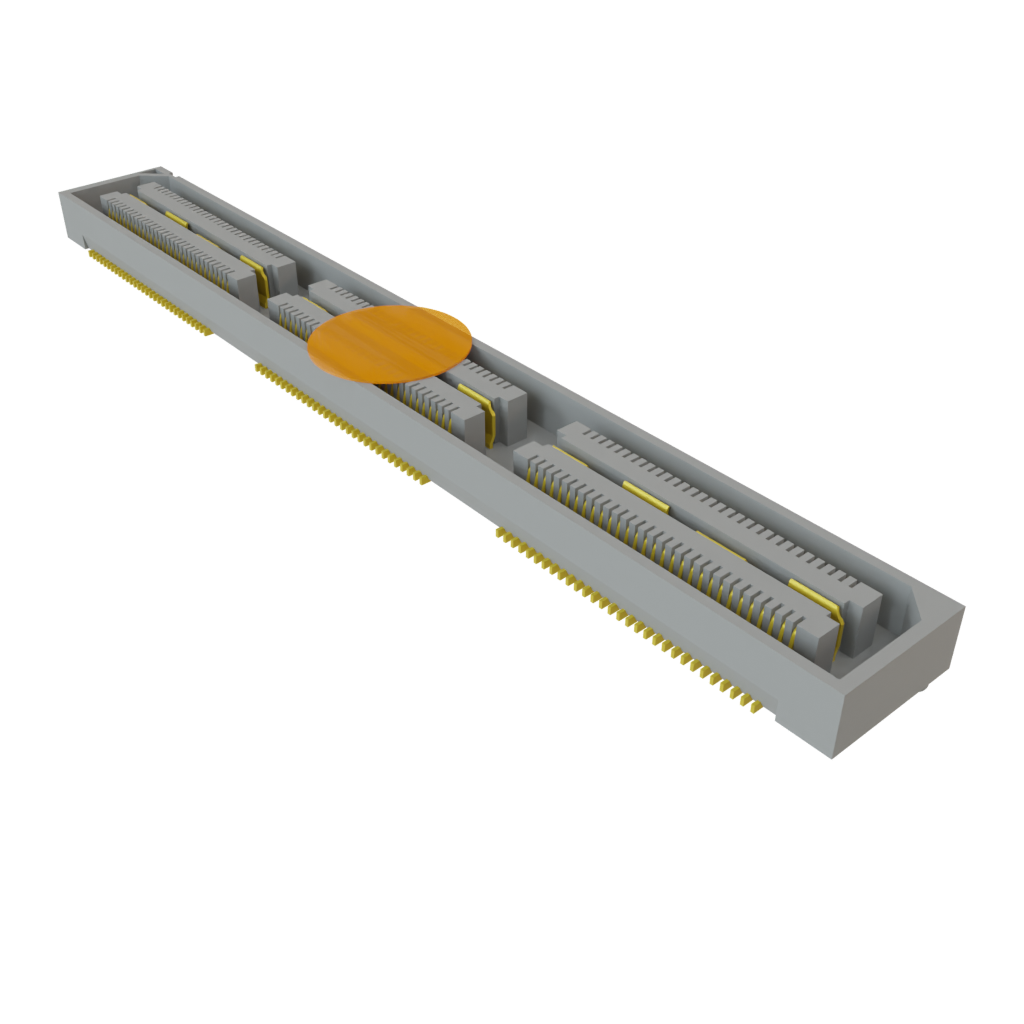

QSH-090-01-H-D-A-K

Name: Samtec QSH-090-01-H-D-A-K
Brand: Samtec
SKU: 200-QSH09001HDAK
Price: 21.38 EUR
Availability: InStock

Las imágenes son sólo para referencia
Ver especificaciones del producto

Mouser REF:

200-QSH09001HDAK

Fabr. N.º:

QSH-090-01-H-D-A-K

Fabr.:

Samtec

Descripción:

Conectores placa a placa y mezzanine 0.50 mm Q Strip High-Speed Ground Plane Socket Strip

Hoja de datos:

QSH-090-01-H-D-A-K Hoja de datos (PDF)

Modelo ECAD:

Descargue el Cargador de bibliotecas gratuito para convertir este archivo para su herramienta ECAD. Obtenga más información del modelo ECAD.

Más información

Más información sobre Samtec QSH-090-01-H-D-A-K

En existencias: 26

Existencias:: 26 Puede enviarse inmediatamente

Se ha producido un error inesperado. Intente de nuevo más tarde.
Plazo de producción de fábrica:: 2 Semanas Tiempo estimado para la producción en fábrica para cantidades superiores a las mostradas.

Introducir cantidad:

Mínimo: 1 Múltiples: 1

Precio unitario:

-,-- €

Precio total:

-,-- €

Tarifa estimada:

Precio (EUR)

Cant.	Precio unitario	Precio total
	21,38 €	21,38 €
	20,86 €	1.752,24 €
	20,28 €	5.110,56 €

Empaquetado alternativo

Fabr. N.º Ref.:

QSH-090-01-H-D-A-K-TR

Embalaje:

Reel, Cut Tape

Disponibilidad:

En existencias

Precio:

18,60 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Atributo del producto	Valor del atributo	Seleccionar atributo
Fabricante:	Samtec
Categoría de producto:	Conectores placa a placa y mezzanine
RoHS:
Producto:	Sockets
Número de posiciones:	180 Position
Paso:	0.5 mm (0.02 in)
Número de filas:	2 Row
Estilo de terminación:	Solder
Ángulo de montaje:	Straight
Valor de corriente:	2 A
Voltaje máximo:	175 VAC
Temperatura operativa mínima:	- 55 C
Temperatura operativa máxima:	+ 125 C
Recubrimiento del contacto:	Gold
Material del contacto:	Phosphor Bronze
Material de la carcasa:	Liquid Crystal Polymer (LCP)
Serie:	QSH
Empaquetado:	Tray
Aplicación:	Power, Signal
Marca:	Samtec
Inflamabilidad máxima:	UL 94 V-0
Estilo de montaje:	Mounting Peg
Tipo de producto:	Board to Board & Mezzanine Connectors
Cantidad del paquete de fábrica:	42
Subcategoría:	Board to Board & Mezzanine Connectors
Nombre comercial:	Q Strip
Peso unitario:	1,039 g

Productos encontrados:

Para mostrar productos similares, seleccione al menos una casilla

Seleccione al menos una casilla para mostrar productos similares dentro de esta categoría.

Atributos seleccionados: 0

Filtrar documento:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q Strip™ High-Speed Mezzanine Connectors

Samtec Q Strip™ High-Speed Mezzanine Connectors are designed for high-speed board-to-board applications where signal integrity is essential. Q Strip connectors have surface-mount signal contacts and a surface-mount ground plane between the two rows of signals for improved electrical performance. Mated sets of Samtec Q Strip connectors are available in 8 different stack heights from 5mm (.197") to 30mm (1.180"). Options include guideposts for blind mate scenarios and alignment pins and locking clips for proper connector placement before reflow.
