QSH-060-01-C-D-A-K

Name: Samtec QSH-060-01-C-D-A-K
Brand: Samtec
SKU: 200-QSH06001CDAK
Price: 7.03 EUR
Availability: InStock

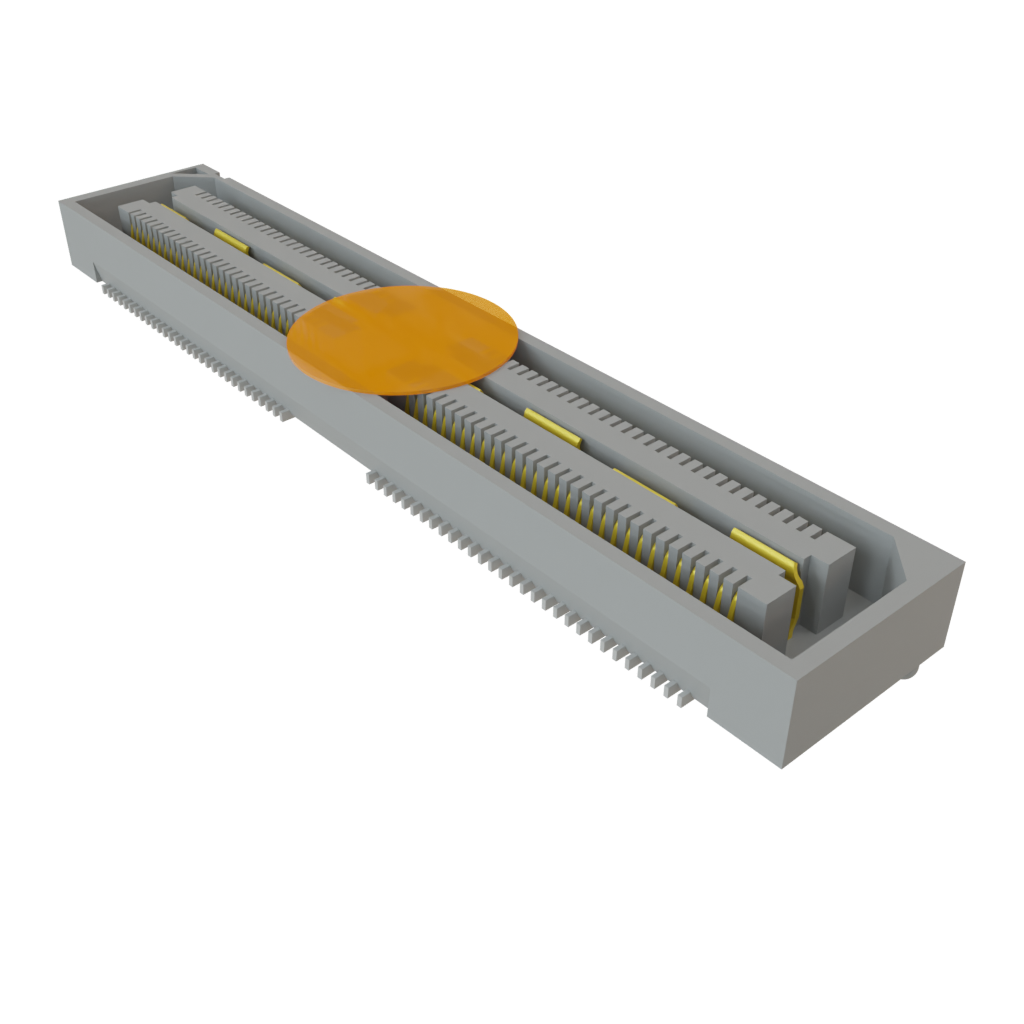

Las imágenes son sólo para referencia
Ver especificaciones del producto

Mouser REF:

200-QSH06001CDAK

Fabr. N.º:

QSH-060-01-C-D-A-K

Fabr.:

Samtec

Descripción:

Conectores placa a placa y mezzanine 0.50 mm Q Strip High-Speed Ground Plane Socket Strip

Hoja de datos:

QSH-060-01-C-D-A-K Hoja de datos (PDF)

Modelo ECAD:

Descargue el Cargador de bibliotecas gratuito para convertir este archivo para su herramienta ECAD. Obtenga más información del modelo ECAD.

Más información

Más información sobre Samtec QSH-060-01-C-D-A-K

En existencias: 315

Existencias:: 315 Puede enviarse inmediatamente

Se ha producido un error inesperado. Intente de nuevo más tarde.
Plazo de producción de fábrica:: 3 Semanas Tiempo estimado para la producción en fábrica para cantidades superiores a las mostradas.

Introducir cantidad:

Mínimo: 1 Múltiples: 1

Precio unitario:

-,-- €

Precio total:

-,-- €

Tarifa estimada:

Precio (EUR)

Cant.	Precio unitario	Precio total
	7,03 €	7,03 €
	6,06 €	1.551,36 €
	5,80 €	2.969,60 €

Empaquetado alternativo

Fabr. N.º Ref.:

QSH-060-01-C-D-A-K-TR

Embalaje:

Reel, Cut Tape

Disponibilidad:

En existencias

Precio:

7,75 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Atributo del producto	Valor del atributo	Seleccionar atributo
Fabricante:	Samtec
Categoría de producto:	Conectores placa a placa y mezzanine
RoHS:
Producto:	Sockets
Número de posiciones:	120 Position
Paso:	0.5 mm (0.02 in)
Número de filas:	2 Row
Estilo de terminación:	Solder
Ángulo de montaje:	Straight
Valor de corriente:	2 A
Voltaje máximo:	175 VAC
Temperatura operativa mínima:	- 55 C
Temperatura operativa máxima:	+ 125 C
Recubrimiento del contacto:	Gold
Material del contacto:	Phosphor Bronze
Material de la carcasa:	Liquid Crystal Polymer (LCP)
Serie:	QSH
Empaquetado:	Tray
Aplicación:	Power, Signal
Marca:	Samtec
Inflamabilidad máxima:	UL 94 V-0
Estilo de montaje:	Mounting Peg
Tipo de producto:	Board to Board & Mezzanine Connectors
Cantidad del paquete de fábrica:	64
Subcategoría:	Board to Board & Mezzanine Connectors
Nombre comercial:	Q Strip
Peso unitario:	692,400 mg

Productos encontrados:

Para mostrar productos similares, seleccione al menos una casilla

Seleccione al menos una casilla para mostrar productos similares dentro de esta categoría.

Atributos seleccionados: 0

Filtrar documento:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q Strip™ High-Speed Mezzanine Connectors

Samtec Q Strip™ High-Speed Mezzanine Connectors are designed for high-speed board-to-board applications where signal integrity is essential. Q Strip connectors have surface-mount signal contacts and a surface-mount ground plane between the two rows of signals for improved electrical performance. Mated sets of Samtec Q Strip connectors are available in 8 different stack heights from 5mm (.197") to 30mm (1.180"). Options include guideposts for blind mate scenarios and alignment pins and locking clips for proper connector placement before reflow.

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

High-Speed Cable Assemblies

Samtec High-Speed Cable Assemblies include AcceleRate® slim body, ERCD 0.80mm Edge Rate®, HLCD high-speed hermaphroditic, HQCD 0.50mm Q Strip®, and SEAC SEARAY™ series. The AcceleRate cable assembly consists of the ARC6 slim cable body that mates together with the ARF6 series for a secure connection. The ERCD 0.80mm Edge Rate assemblies use Samtec's Eye Speed cable to provide a 14Gbps performance and feature a double-row system to 120 pins and a standard metal latching system. Eye Speed cable technology offers excellent signal integrity performance with an individual copper serve or braid shielding, 26AWG to 38AWG coax and twinax construction, and 20Ω, 50Ω, 85Ω, and 100Ω ratings.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

5G Automotive & Transportation Solutions

Samtec 5G Automotive and Transportation Connectivity meets the needs of the growing 5G network market. As implementation of the 5G network quickly gains momentum, high-performance devices, systems, and test and measurement equipment are needed to support the ultra-high frequencies and high data rates that technologies like mmWave, Massive MIMO, beamforming, and full duplex demand. Samtec offers high-performance interconnects and high-level technical expertise to support these requirements, including an expanding portfolio of solutions ideal for Automotive applications.
