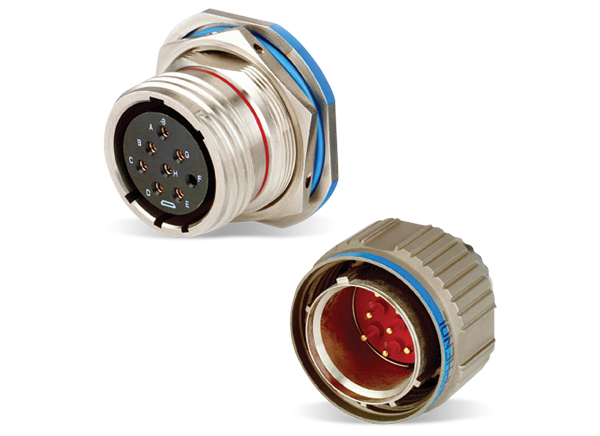

Amphenol MIL-DTL-38999 Series III Circular Connectors deliver high-performance capabilities for demanding general duty and harsh environment applications. Developed to operate under severe high temperature and vibration, the connectors feature rapid coupling via a Tri-Start™ thread, shell-to-shell, or metal-to-metal bottoming. Amphenol designed these connectors to provide an EMI shielding capability of 65dB minimum at 10GHz and corrosion resistance of up to 500-hour salt spray exposure. Amphenol MIL-DTL-38999 Series III Circular Connectors offer a rated current range of 1.5A to 5A, a temperature range of -65°C to +175°C, minimum insulation resistance of 5000MΩ, and a dielectric withstanding voltage of 1000VRMS. These rugged and highly reliable circular connectors are ideally suited for industrial, commercial air, military, C4ISR, and space applications.
High performance for demanding general duty and harsh environment applications
Developed to operate under severe high temperature and vibration environments
Rapid coupling via a Tri-Start thread, shell-to-shell or metal-to-metal bottoming
Rugged and highly reliable
Improved EMI shielding
Amphenol Aerospace Circular Connectors
Meets the requirements of military, commercial air, and industrial applications.
