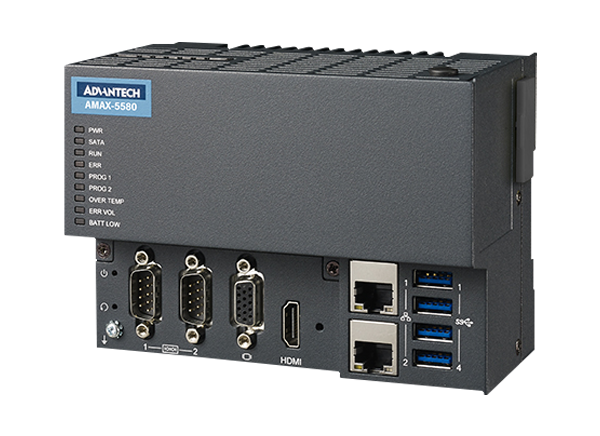

Advantech AMAX-5580 Embedded Box Computers
Advantech AMAX-5580 Embedded Box Computers feature 6th generation Intel® Core™ i7/i5/Celeron processors up to 2.6GHz with 4GB/8GB DDR4 memory. These embedded box computers include dual power input with alarm output and wireless mPCIe module that supports 3G, LTE, Wi-fi®, and GPS. The AMAX-5580 computers provide chassis grounding protection, upstream LAN redundancy, and downstream EtherCAT cable redundancy. These embedded box computers operate at -10°C to +60°C temperature range. The AMAX-5580 computers function at 42W maximum power consumption and 24VDC ± 20% power requirement. These embedded box computers are an ideal solution for data gateway, concentrator, and data server applications.
Features
- 6th generation Intel® Core™ i7/i5/Celeron processors with 4GB/8GB DDR4 memory
- 2 x GbE, 4 x USB 3.0, 2 x RS-232 /422/485, 1 x VGA, and 1 x HDMI
- Dual power input with alarm output
- Compact and fanless design for DIN-rail mount in a control cabinet
- Wireless mPCIe module support for 3G, LTE, Wi-fi, and GPS
- Chassis grounding protection
- Independent resource on Intel i210 GbE for better EtherCAT performance
- Upstream LAN redundancy
- Downstream EtherCAT cable redundancy
- Optimized BIOS for CODESYS real-time control kernel
Specifications
- -10°C to +60°C operating temperature range
- 42W maximum power consumption
- 24VDC ±20% power requirement
- -40°C to +85°C storage temperature range

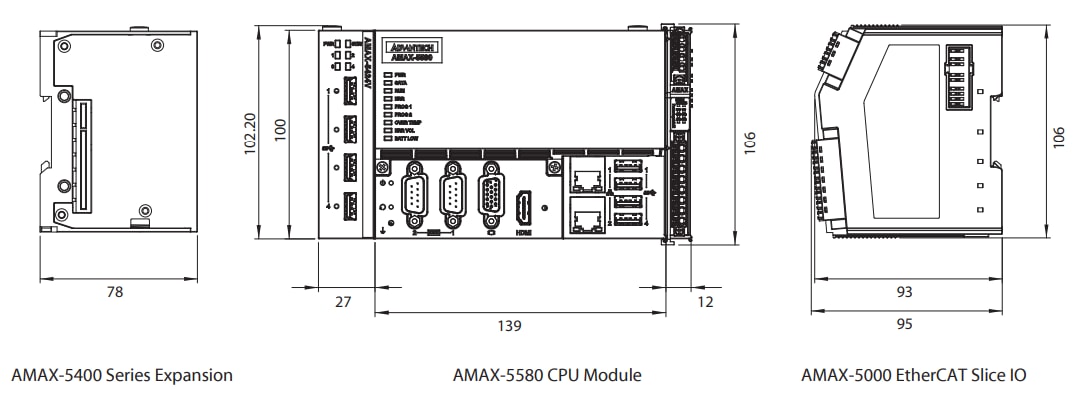

Mechanical Drawing
