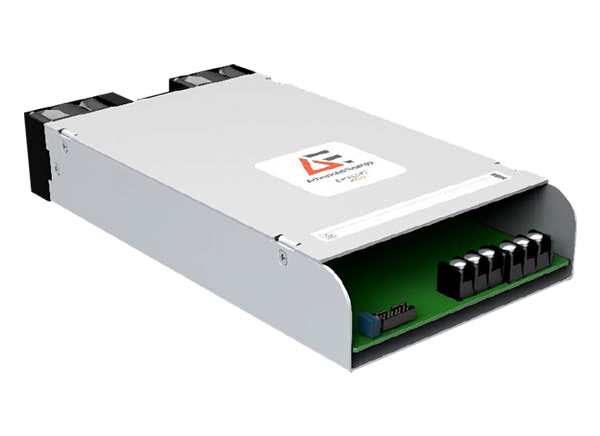

Advanced Energy Xsolo Ultra-Compact Single Output Power Supplies
Advanced Energy Xsolo Ultra-Compact Single Output Power Supplies offer a 10.5A to 42A output current range, 85VAC to 264VAC input voltage range, and >92% efficiency. The Xsolo series delivers a convection-cooled 504W in an open-frame U-channel form factor. This power supply also provides up to 1008W in an enclosed, fan-cooled chassis. Advanced Energy Xsolo Ultra-Compact Single Output Power Supplies are ideal for industrial, communication, and test and measurement applications.
Features
- Suitable for type B-rated applications
- Low-profile design
- Remote ON/OFF signal
- Power Good signal
- Optional I2C PMBus™ communications
- Optional OR-ing function
- Adjustable output voltage control
- All models feature active power factor correction as standard
Specifications
- >92% efficiency
- 1U height (40mm) profile
- Convection-cooled 500W
- 24V to 48V output voltage
- 0.5A to 42A output current range
- Fan-cooled 1000W
- 12V/300mA bias standby voltage
- 5000m altitude for EN60950 applications
Applications
- Industrial
- Test and measurement
- Hi-Rel MIL-COTS
- Acoustically sensitive laboratory and medical environments
- Communication
